ECS-2520MVLC-250-BP-TR - ECS

Description: 25 MHz XO (Standard) CMOS Oscillator 1.6V ~ 3.6V Enable/Disable 4-SMD, No Lead

Download ECS-2520MVLC-250-BP-TR Model
Schematic

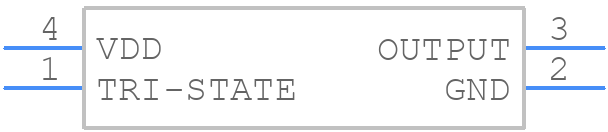

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ECS-2520MVLC-250-BP-TR - ECS PCB footprint - Other - Other - ECS-2520MVLC-250-BP-TR-1
click to zoom
3D Models
ECS-2520MVLC-250-BP-TR - ECS  - 3D model - Other - ECS-2520MVLC-250-BP-TR-1
click to zoom

ECS-2520MVLC-250-BP-TR Details

  • Manufacturer Part Number:

    ECS-2520MVLC-250-BP-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SMD, 4 PIN

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    ECS International Inc

  • YTEOL:

    6

  • Additional Feature:

    TRI-STATE; STANDBY; ENABLE/DISABLE FUNCTION

  • Fall Time-Max:

    7 ns

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Stability:

    50%

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    4

  • Operating Frequency-Nom:

    25 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    CMOS

  • Output Load:

    15 pF

  • Package Body Material:

    CERAMIC

  • Package Equivalence Code:

    LCC4,.08X.1,68/52

  • Packing Method:

    TR, 7 INCH

  • Physical Dimension:

    2.5mm x 2.0mm x 0.8mm

  • Rise Time-Max:

    7 ns

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.6 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    45/55 %

  • Terminal Finish:

    Gold (Au)

ECS-2520MVLC-250-BP-TR Frequently Asked Questions (FAQs)

  • The recommended PCB layout and thermal management for ECS-2520MVLC-250-BP-TR involve using a 4-layer PCB with a solid ground plane, placing the component on the top layer, and using thermal vias to dissipate heat. A heat sink or thermal pad is also recommended to ensure optimal thermal performance.
  • To ensure reliable operation in high-vibration environments, it is recommended to use a secure mounting method, such as screwing or adhesive, and to follow the manufacturer's guidelines for vibration testing. Additionally, consider using a vibration-dampening material or potting the component to reduce the impact of vibrations.
  • The recommended soldering parameters for ECS-2520MVLC-250-BP-TR include a peak temperature of 260°C, a soldering time of 3-5 seconds, and a soldering iron tip temperature of 350-380°C. It is also recommended to use a solder with a melting point of 217-220°C.
  • To troubleshoot common issues with ECS-2520MVLC-250-BP-TR, start by checking the power supply voltage, current, and temperature. Verify that the component is properly mounted and soldered, and check for any signs of physical damage. Use a thermal imaging camera or thermometer to identify hotspots, and consult the datasheet and application notes for guidance on troubleshooting specific issues.
  • Yes, ECS-2520MVLC-250-BP-TR is a switching regulator, which can generate electromagnetic interference (EMI). To minimize EMI, use a shielded enclosure, keep the component away from sensitive circuits, and use EMI filters or chokes as needed. Follow the manufacturer's guidelines for EMI/EMC testing and compliance.
