ECS-3225MV-240-BN-TR footprint, schematic symbol and 3D model by ECS

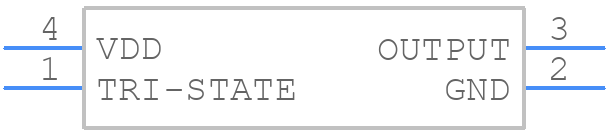

Symbol

PCB Footprints

3D Models

ECS-3225MV-240-BN-TR Details

The recommended PCB layout involves placing the component on a 4-layer board with a solid ground plane, and using thermal vias to dissipate heat. A heat sink or thermal pad is also recommended to ensure optimal thermal management.
To ensure EMC, it is recommended to use a shielded enclosure, keep the component away from high-frequency sources, and use a common-mode choke or ferrite bead to filter out electromagnetic interference.
The maximum operating temperature range for ECS-3225MV-240-BN-TR is -40°C to 125°C, with a storage temperature range of -55°C to 150°C.
Yes, the ECS-3225MV-240-BN-TR is designed to withstand high-vibration environments, with a vibration rating of 10G peak acceleration. However, it's recommended to follow the manufacturer's guidelines for mounting and securing the component.
The recommended soldering profile involves a peak temperature of 260°C, with a dwell time of 30-60 seconds. It's also recommended to use a solder with a melting point of 217°C or higher.
