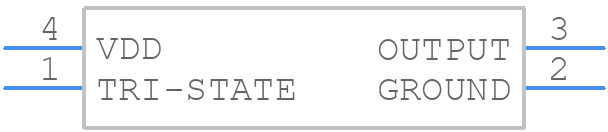

ECS-3951M-1000-BN-TR - ECS - PCB symbol
click to zoom
PCB Footprints

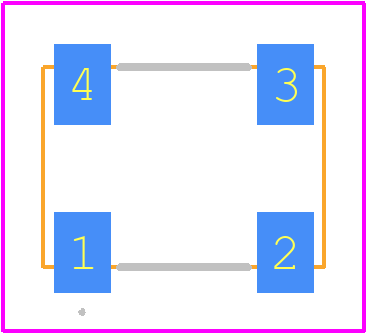

ECS-3951M-1000-BN-TR - ECS PCB footprint - Other - Other - ECS-3951M-1000-BN-TR-1
click to zoom
3D Models
ECS-3951M-1000-BN-TR - ECS - 3D model - Other - ECS-3951M-1000-BN-TR-1
click to zoom

ECS-3951M-1000-BN-TR Details

  • Manufacturer Part Number:

    ECS-3951M-1000-BN-TR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SMD, 4 PIN

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    ECS International Inc

  • YTEOL:

    6

  • Additional Feature:

    TRI-STATE; ENABLE/DISABLE FUNCTION

  • Fall Time-Max:

    5 ns

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Stability:

    50%

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    4

  • Operating Frequency-Nom:

    100 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    HCMOS

  • Output Load:

    30 pF

  • Package Equivalence Code:

    DILCC4,.2,200

  • Packing Method:

    TR

  • Physical Dimension:

    7.0mm x 5.0mm x 1.7mm

  • Qualification Status:

    Not Qualified

  • Rise Time-Max:

    5 ns

  • Supply Current-Max:

    60 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    4.5 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    40/60 %

  • Terminal Finish:

    Gold (Au) - with Nickel (Ni) barrier
