ECS-3961-100-AU-TR footprint, schematic symbol and 3D model by ECS

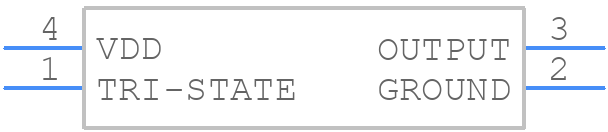

Symbol

PCB Footprints

3D Models

ECS-3961-100-AU-TR Details

The recommended PCB layout involves placing the ECS-3961-100-AU-TR near the edge of the board to minimize thermal resistance. A thermal pad or heat sink is recommended to dissipate heat. A 4-layer PCB with a dedicated ground plane and power plane is recommended for optimal performance.
To ensure EMC, ensure proper grounding, use a shielded enclosure, and keep the ECS-3961-100-AU-TR away from other components that may interfere with its operation. Additionally, use a common-mode choke or ferrite bead to filter out electromagnetic interference (EMI).
The maximum operating temperature range for the ECS-3961-100-AU-TR is -40°C to 85°C. However, it's recommended to operate within a temperature range of 0°C to 70°C for optimal performance and reliability.
Yes, the ECS-3961-100-AU-TR is designed to withstand vibrations up to 10G. However, it's recommended to secure the component using a suitable mounting method, such as a screw or adhesive, to prevent damage or dislodging.
Store the ECS-3961-100-AU-TR in a dry, cool place away from direct sunlight. Handle the component by the body, avoiding touching the pins or electrical components. Use an anti-static wrist strap or mat to prevent electrostatic discharge (ESD) damage.
