ECS-3961-200-AU-TR footprint, schematic symbol and 3D model by ECS

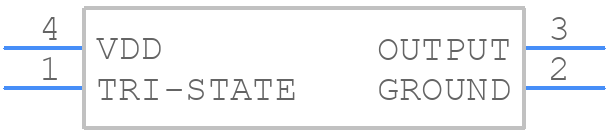

Symbol

PCB Footprints

3D Models

ECS-3961-200-AU-TR Details

The recommended PCB layout involves placing the ECS-3961-200-AU-TR near the edge of the board to minimize thermal resistance. A thermal pad or heat sink is recommended to dissipate heat. A minimum of 2oz copper thickness is recommended for the PCB to ensure good thermal conductivity.
To ensure EMC, it is recommended to use a metal shield around the ECS-3961-200-AU-TR, and to keep the device at least 10mm away from other components. Additionally, a common-mode choke or ferrite bead can be used to filter out electromagnetic interference.
The maximum operating temperature range for the ECS-3961-200-AU-TR is -40°C to 85°C. However, it is recommended to operate the device within a temperature range of 0°C to 70°C for optimal performance and reliability.
Yes, the ECS-3961-200-AU-TR is designed to withstand high-vibration environments. However, it is recommended to use a secure mounting method, such as screwing or adhesive, to ensure the device remains in place during operation.
The ECS-3961-200-AU-TR should be stored in a dry, cool place away from direct sunlight. It is recommended to handle the device by the edges to prevent damage to the pins. Anti-static precautions should be taken when handling the device to prevent electrostatic discharge.
