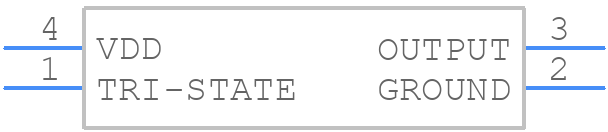

ECS-3963-250-AU-TR - ECS

ECS-3963-250-AU-TR Frequently Asked Questions (FAQs)

• What is the recommended PCB layout and thermal management for optimal performance?
  The recommended PCB layout involves placing the component on a 4-layer board with a solid ground plane, and using thermal vias to dissipate heat. A thermal pad on the bottom of the component should be connected to a large copper area on the PCB to facilitate heat dissipation.
• How does the component behave under high-frequency switching conditions?
  The ECS-3963-250-AU-TR is designed to operate at high frequencies, but it's essential to consider the skin effect and proximity effect in the PCB design. The component's performance may degrade if the PCB layout is not optimized for high-frequency operation.
• What are the recommended soldering and rework conditions for this component?
  The recommended soldering temperature is between 250°C to 260°C, with a peak temperature not exceeding 265°C. Rework conditions should be limited to 3 reflows, with a maximum temperature of 240°C to prevent damage to the component.
• Are there any specific ESD handling and storage requirements for this component?
  Yes, the ECS-3963-250-AU-TR is sensitive to electrostatic discharge (ESD). It's essential to handle the component in an ESD-controlled environment, and store it in a shielded bag or container to prevent damage.
• What is the component's behavior under high-temperature storage conditions?
  The ECS-3963-250-AU-TR is rated for storage temperatures up to 40°C. Prolonged exposure to higher temperatures can affect the component's reliability and lifespan. It's recommended to store the component in a cool, dry place.
