ECS-5032MV-245.7-BN-TR footprint, schematic symbol and 3D model by ECS

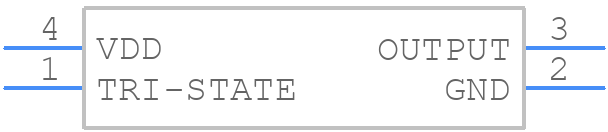

Symbol

PCB Footprints

3D Models

ECS-5032MV-245.7-BN-TR Details

ECS International Inc recommends a 4-layer PCB with a dedicated ground plane and thermal vias to dissipate heat. A minimum of 2 oz copper thickness is recommended for the top and bottom layers. Additionally, a thermal pad with a minimum size of 10mm x 10mm is recommended for heat dissipation.
Yes, ECS-5032MV-245.7-BN-TR is designed to withstand high-vibration environments. It has a vibration rating of 10G peak acceleration and 2.5G RMS acceleration. However, it's recommended to follow proper mounting and screwing procedures to ensure the oscillator remains securely attached to the PCB.
The typical start-up time for ECS-5032MV-245.7-BN-TR is around 2-5ms. However, this can vary depending on the specific application, power supply, and PCB design. It's recommended to consult with ECS International Inc's application engineers for specific guidance.
Yes, ECS-5032MV-245.7-BN-TR is compatible with lead-free soldering processes. It has a peak reflow temperature rating of 260°C, which is compatible with most lead-free soldering processes. However, it's recommended to follow ECS International Inc's recommended soldering profile to ensure optimal performance and reliability.
ECS International Inc recommends storing ECS-5032MV-245.7-BN-TR in a dry, cool place away from direct sunlight and moisture. The devices should be stored in their original packaging or in a shielded container to prevent ESD damage. Handling should be done with anti-static wrist straps or mats to prevent ESD damage.
