Description:Standard Clock Oscillators ECS-LVDS33,OSC XO 200.000MHZ LVDS SMD,3.3V,+/-50ppm,-40+/-C - 85+/-C,70mA,Surface Mount,0.276" L x 0.197" W (7.00mm x 5.00mm),0.067" (1.70mm)
The recommended PCB layout and routing for optimal signal integrity involves keeping the LVDS pairs close together, using a differential impedance of 100 ohms, and minimizing vias and bends. It's also recommended to use a solid ground plane and to keep the signal traces away from noise sources.
To ensure EMC with the ECS-LVDS33-2000-BN, it's recommended to use a shielded cable, keep the device away from high-frequency noise sources, and use a common-mode choke or ferrite bead to filter out electromagnetic interference (EMI).
The maximum cable length supported by the ECS-LVDS33-2000-BN depends on the specific application and the type of cable used. However, as a general rule, the maximum cable length for LVDS signals is around 10-15 meters. It's recommended to consult the datasheet and perform signal integrity simulations to determine the maximum cable length for a specific application.
To troubleshoot issues with the ECS-LVDS33-2000-BN, it's recommended to use a logic analyzer or oscilloscope to monitor the signal quality and integrity. Check for common issues such as signal attenuation, jitter, and skew. Also, verify that the device is properly powered and that the input signals are within the specified voltage range.
The ECS-LVDS33-2000-BN is a standard LVDS device and is compatible with other LVDS devices that comply with the TIA/EIA-644 LVDS standard. However, it's recommended to verify the specific requirements of the target device and ensure that the ECS-LVDS33-2000-BN meets those requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ECS-LVDS33-2000-BN Overview

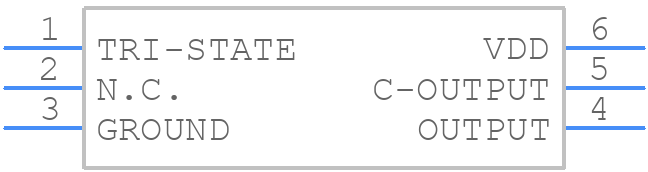

Use the download button to access the ECS-LVDS33-2000-BN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ECS-L,
or try a keyword search, such as XO
