ECW0J-B24-BD0009L footprint, schematic symbol and 3D model by Bourns

Symbol

click to zoom

PCB Footprints

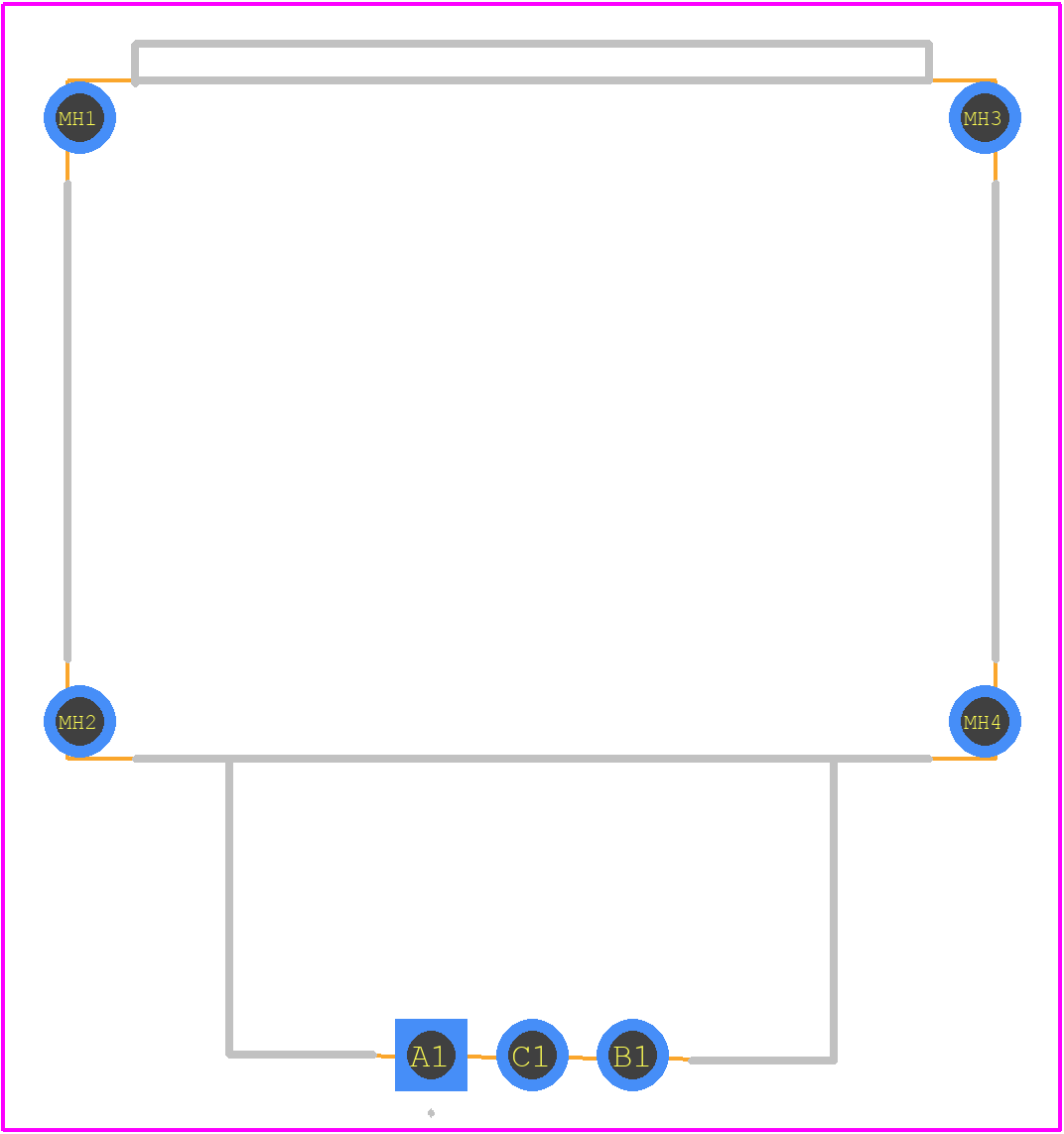

ECW0J-B24-BD0009L - Bourns PCB footprint - Other - Other - ECW0J-B24-BD0009L-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ECW0J-B24-BD0009L
Part Number ECW0J-B24-BD0009L
Manufacturer Bourns
Pin Count 7
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - ECW0J-B24-BD0009L-2
Released Date Jan 16, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

ECW0J-B24-BD0009L Details

Manufacturer Part Number:
ECW0J-B24-BD0009L
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT PACKAGE-7
Country Of Origin:
Mexico
Factory Lead Time:
6 Weeks
Manufacturer:
Bourns Inc
Configuration:
SINGLE, 2 CHANNELS
JESD-609 Code:
e3
Number of Functions:
1
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Optoelectronic Device Type:
ROTARY POSITION ENCODER
Terminal Finish:
TIN

ECW0J-B24-BD0009L Frequently Asked Questions (FAQs)

The recommended operating temperature range for the ECW0J-B24-BD0009L is -40°C to 125°C.
Yes, the ECW0J-B24-BD0009L is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.
The typical power rating of the ECW0J-B24-BD0009L is 1/4 watt (250mW).
Yes, the ECW0J-B24-BD0009L is suitable for use in high-reliability applications, such as aerospace, defense, and medical devices, due to its high-quality construction and rigorous testing.
Yes, the ECW0J-B24-BD0009L is compatible with lead-free soldering processes, making it suitable for use in modern electronic assemblies.

Trust Checks

Community Provided

System Verified

Community Approved

ECW0J-B24-BD0009L Overview

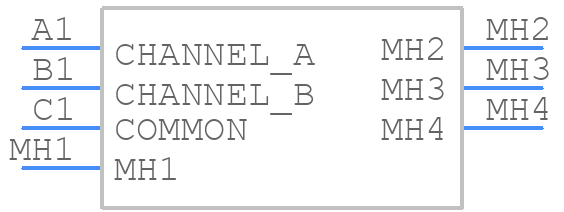

Use the download button to access the ECW0J-B24-BD0009L schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like ECW0J, or try a keyword search, such as Optical Position Encoders
