Bourns recommends a symmetrical PCB layout with a solid ground plane and a minimum of 1 oz copper thickness to minimize electromagnetic interference (EMI) and ensure optimal performance.
While the ECW0J-C24-BE0024L is rated for operation up to 125°C, it's recommended to derate the current rating by 1.5% per degree Celsius above 85°C to ensure reliable operation in high-temperature applications.
The ECW0J-C24-BE0024L is designed to withstand surge currents up to 100 A for 1 ms, but it's essential to ensure that the PCB layout and surrounding components can also handle such surges to prevent damage.
Yes, the ECW0J-C24-BE0024L is compatible with lead-free soldering processes, but it's recommended to follow the recommended soldering profile and temperature guidelines to ensure reliable assembly.
Bourns recommends storing the ECW0J-C24-BE0024L in its original packaging, away from direct sunlight, moisture, and extreme temperatures. Handling should be done with anti-static wrist straps and mats to prevent ESD damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ECW0J-C24-BE0024L Overview

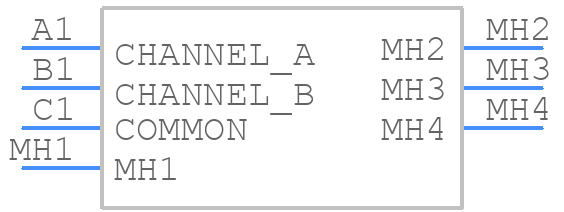

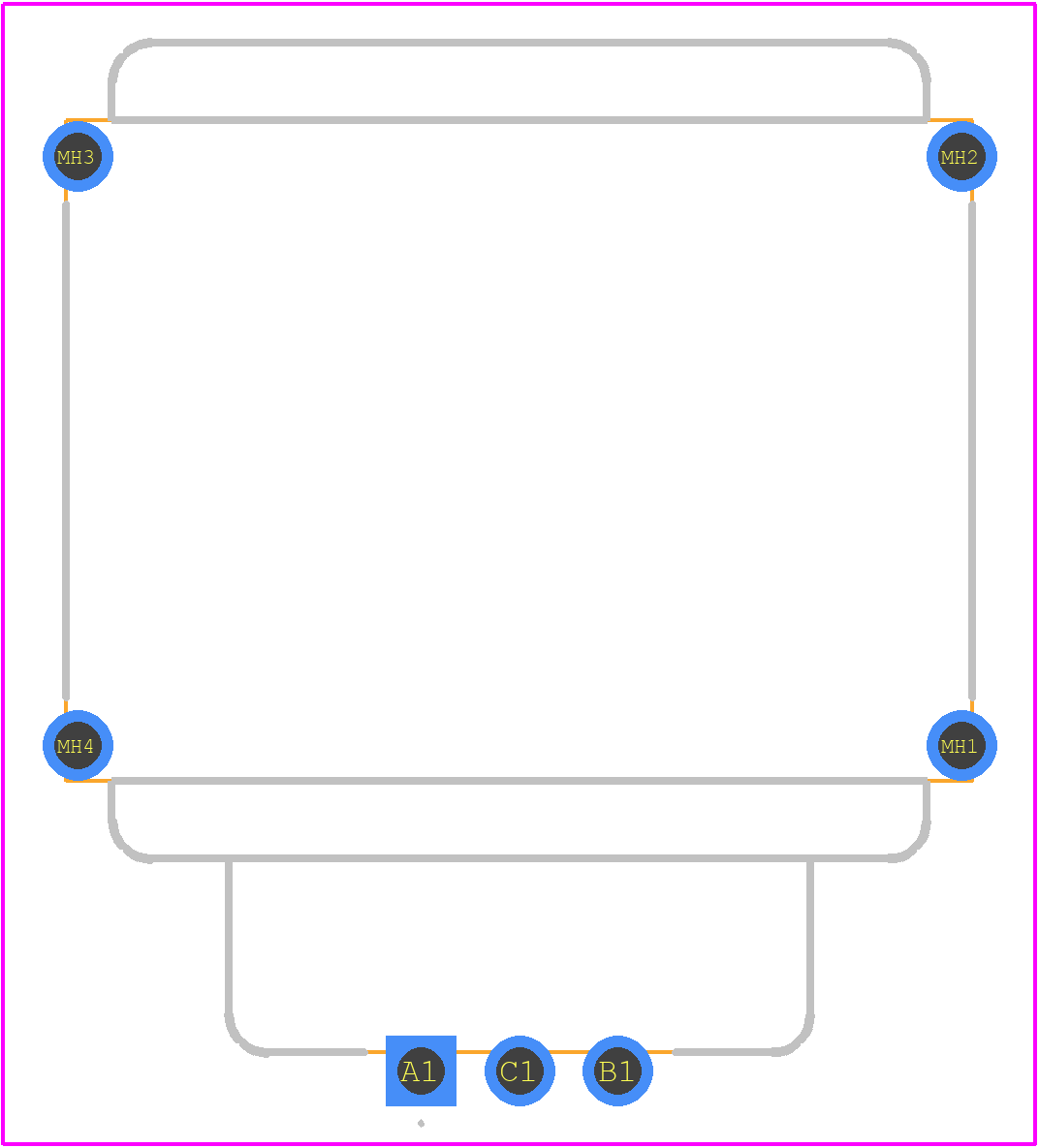

Use the download button to access the ECW0J-C24-BE0024L schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like ECW0J,
or try a keyword search, such as Optical Position Encoders
