EDC10-273+ - Mini-Circuits

Description: 10 dB SMT Directional Coupler, 6000 - 26500 MHz, 50Ω

Download EDC10-273+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

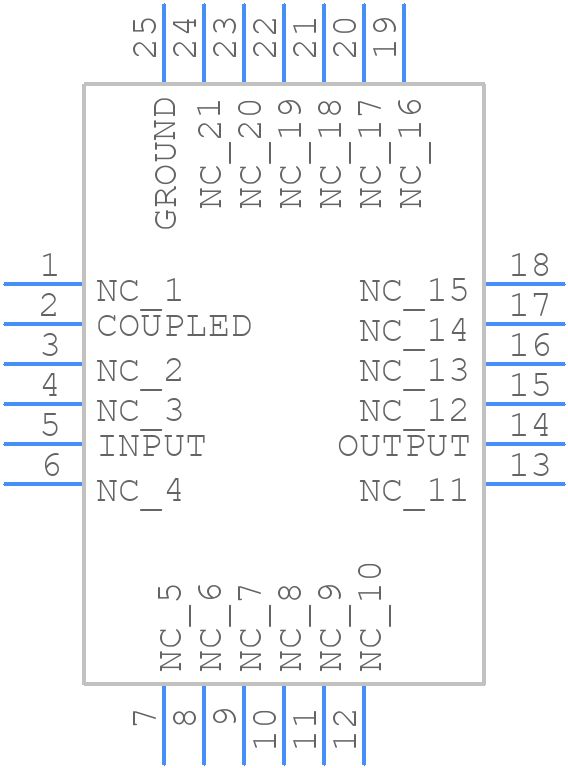

EDC10-273+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
EDC10-273+ - Mini-Circuits PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 4 x 4mm QFN_2025
click to zoom
3D Models
EDC10-273+ - Mini-Circuits - 3D model - Quad Flat No-Lead - 4 x 4mm QFN_2025
click to zoom

EDC10-273+ Details

  • Manufacturer Part Number:

    EDC10-273+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2018-10-29

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.98

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    25 dBm

  • Insertion Loss-Max:

    3.2 dB

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    24

  • Operating Frequency-Max:

    26500 MHz

  • Operating Frequency-Min:

    6000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC24(UNSPEC)

  • RF/Microwave Device Type:

    DIRECTIONAL COUPLER

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • VSWR-Max:

    1.17

EDC10-273+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • The EDC10-273+ requires DC blocking capacitors on the RF ports to prevent DC voltage from affecting the device's performance. Mini-Circuits recommends using high-quality, low-ESR capacitors with a value of 100nF to 1uF, depending on the specific application.
  • While the datasheet doesn't specify a maximum power handling, Mini-Circuits recommends keeping the input power below 23 dBm to ensure reliable operation and prevent damage to the device.
  • The biasing circuit should be designed to provide a stable voltage supply to the device. Mini-Circuits recommends using a low-noise, high-PSRR voltage regulator and decoupling capacitors to minimize noise and ensure stable operation.
  • While the datasheet specifies an operating temperature range of -40°C to +85°C, Mini-Circuits recommends operating the device within a range of -20°C to +70°C for optimal performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EDC10-273+ Overview

Use the download button to access the EDC10-273+ schematic symbol, PCB footprint, and 3D model.
