EDC155Z5R5C - Cornell Dubilier

Description: Supercapacitors / Ultracapacitors 1.5F 5.5V 70C

Download EDC155Z5R5C Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EDC155Z5R5C - Cornell Dubilier - PCB symbol
click to zoom
PCB Footprints

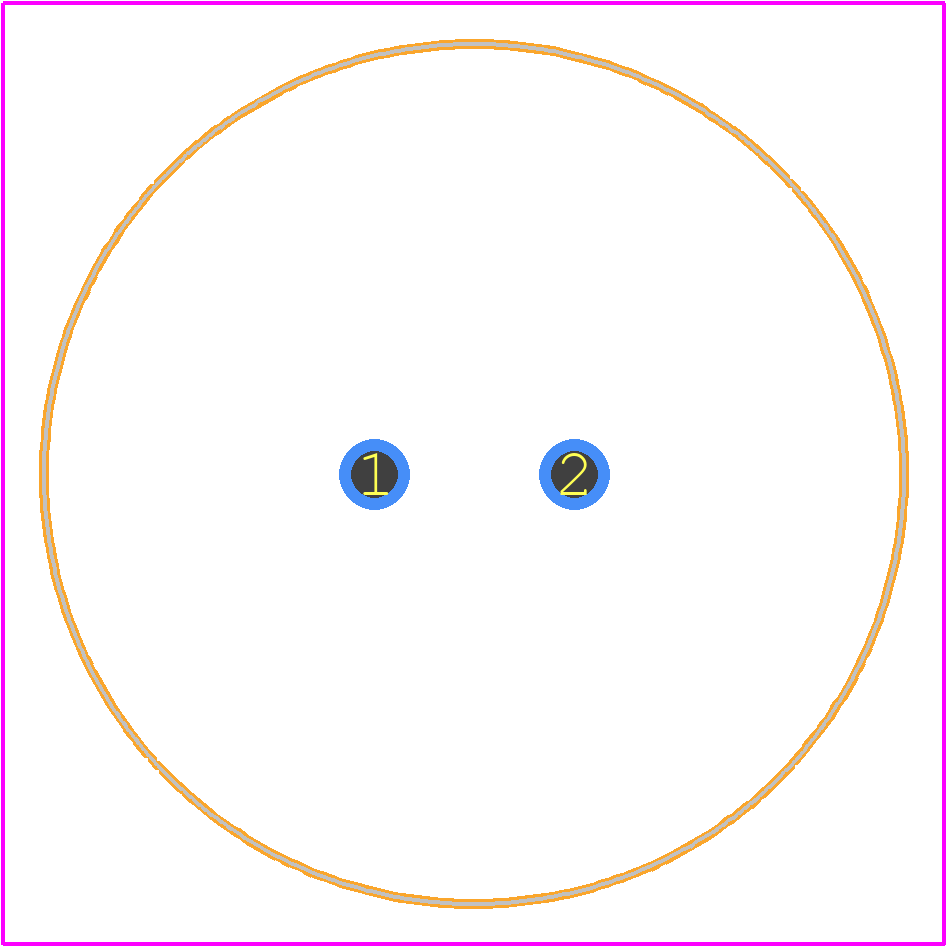

EDC155Z5R5C - Cornell Dubilier PCB footprint - Other - Other - EDC155Z5R5C-2
click to zoom
3D Models
EDC155Z5R5C - Cornell Dubilier - 3D model - Other - EDC155Z5R5C-2
click to zoom

EDC155Z5R5C Details

  • Manufacturer Part Number:

    EDC155Z5R5C

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.29.00.40

  • Manufacturer:

    Knowles CDE

  • YTEOL:

    7

  • Capacitance:

    1500000 µF

  • Capacitor Type:

    ELECTRIC DOUBLE LAYER CAPACITOR

  • Diameter:

    21.5 mm

  • Dielectric Material:

    ACTIVATED CARBON

  • Length:

    7.5 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Style:

    Radial

  • Positive Tolerance:

    80%

  • Rated (DC) Voltage (URdc):

    5.5 V

  • Surface Mount:

    NO

  • Terminal Pitch:

    5 mm

  • Terminal Shape:

    FLAT

EDC155Z5R5C Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the EDC155Z5R5C is 260°C (500°F) for 10 seconds or less.
  • Yes, the EDC155Z5R5C capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, or cadmium.
  • The derating curve for the EDC155Z5R5C capacitor can be found in the application notes section of the datasheet or by contacting Cornell Dubilier Electronics Inc directly.
  • Yes, the EDC155Z5R5C capacitor is designed to withstand high-vibration environments and is suitable for use in applications where vibration is a concern.
  • The shelf life of the EDC155Z5R5C capacitor is 2 years from the date of manufacture, as long as it is stored in its original packaging and under normal storage conditions.
