EDC155Z5R5H - Cornell Dubilier

Description: Supercapacitors / Ultracapacitors 1.5F 5.5V 70C

Download EDC155Z5R5H Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EDC155Z5R5H - Cornell Dubilier - PCB symbol
click to zoom
PCB Footprints

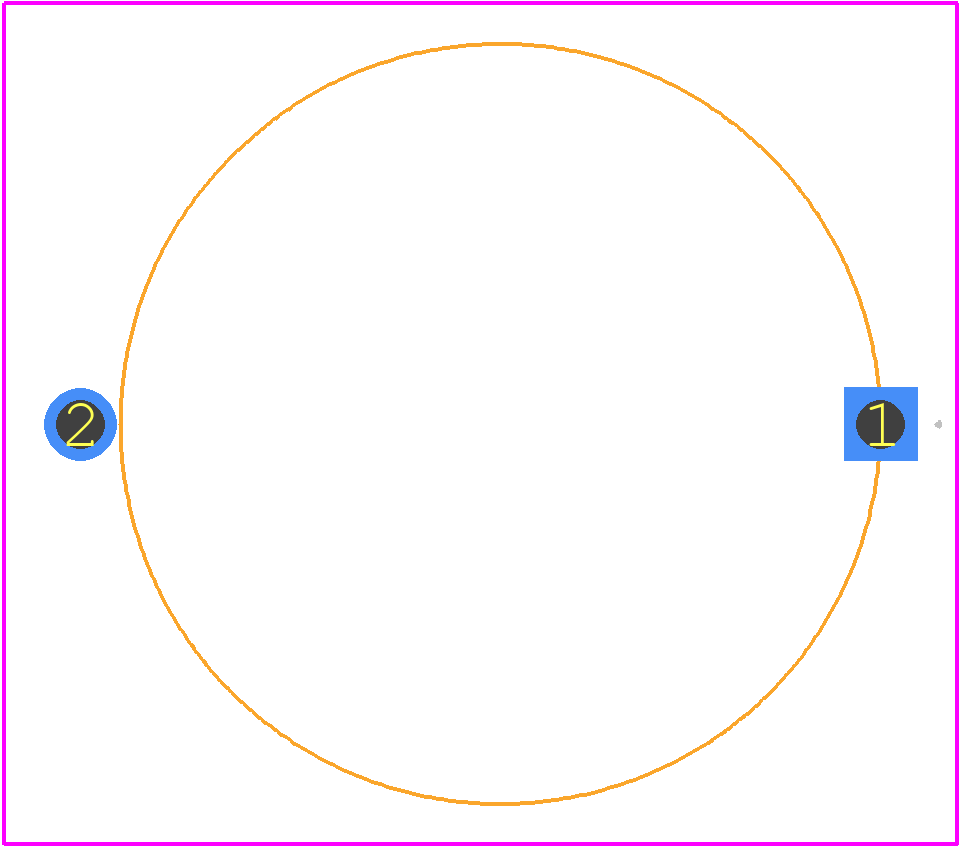

EDC155Z5R5H - Cornell Dubilier PCB footprint - Other - Other - EDC155Z5R5H-4
click to zoom
3D Models
EDC155Z5R5H - Cornell Dubilier - 3D model - Other - EDC155Z5R5H-4
click to zoom

EDC155Z5R5H Details

  • Manufacturer Part Number:

    EDC155Z5R5H

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.29.00.40

  • Manufacturer:

    Knowles CDE

  • YTEOL:

    7

  • Capacitance:

    1500000 µF

  • Capacitor Type:

    ELECTRIC DOUBLE LAYER CAPACITOR

  • Diameter:

    19 mm

  • Dielectric Material:

    ACTIVATED CARBON

  • Length:

    6.5 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Style:

    Radial

  • Positive Tolerance:

    80%

  • Rated (DC) Voltage (URdc):

    5.5 V

  • Surface Mount:

    NO

  • Terminal Pitch:

    20 mm

  • Terminal Shape:

    FLAT

EDC155Z5R5H Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the EDC155Z5R5H is 260°C (500°F) for 10 seconds or less.
  • Yes, the EDC155Z5R5H capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, or cadmium.
  • The maximum operating temperature range for the EDC155Z5R5H is -55°C to 125°C (-65°F to 257°F).
  • Yes, the EDC155Z5R5H capacitor is designed to withstand high-vibration environments and is suitable for use in applications where vibration is a concern.
  • Yes, the EDC155Z5R5H capacitor is designed for high-reliability applications and meets the requirements of various military and aerospace specifications.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EDC155Z5R5H Overview

Use the download button to access the EDC155Z5R5H schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EDC15, or try a keyword search, such as Electric Double Layer Capacitors
