EDC21-24+ - Mini-Circuits

Description: Directional Coupler

Download EDC21-24+ Model

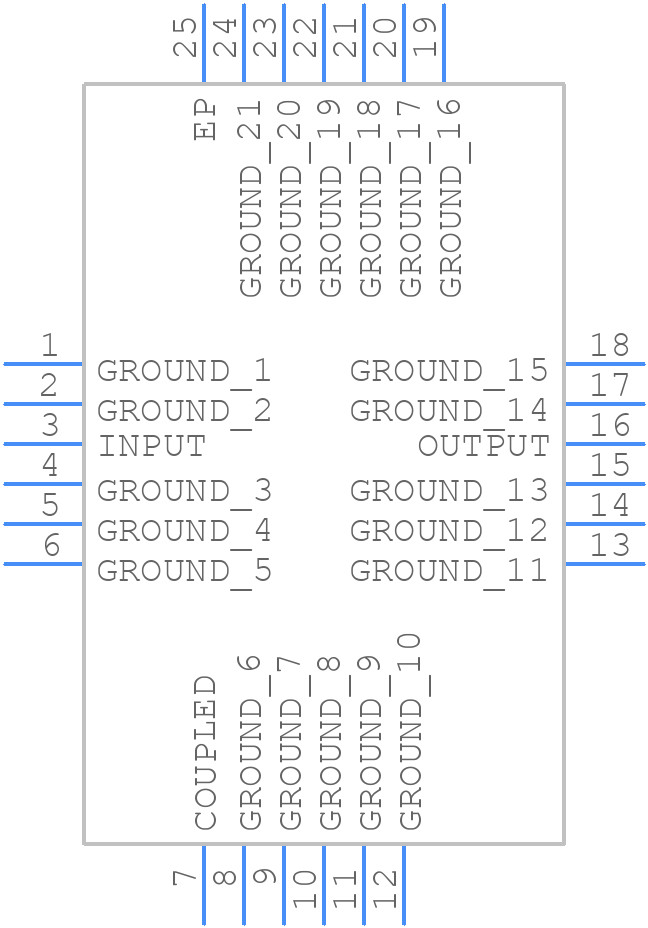

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
EDC21-24+ - Mini-Circuits PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - MCLEDC24
click to zoom
3D Models
EDC21-24+ - Mini-Circuits  - 3D model - Quad Flat No-Lead - MCLEDC24
click to zoom

EDC21-24+ Details

  • Manufacturer Part Number:

    EDC21-24+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2018-01-26

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7.49

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    29.5 dBm

  • Insertion Loss-Max:

    2 dB

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    24

  • Operating Frequency-Max:

    20000 MHz

  • Operating Frequency-Min:

    4000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • RF/Microwave Device Type:

    DIRECTIONAL COUPLER

  • Surface Mount:

    YES

  • Technology:

    GAAS

  • VSWR-Max:

    1.11

EDC21-24+ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and radiation.
  • Mount the device on a heat sink or a metal core PCB to dissipate heat. Ensure good airflow around the device and avoid blocking the airflow with nearby components.
  • The maximum input power is +20 dBm. Exceeding this may cause damage to the device or affect its performance.
  • Yes, but the device's performance may be affected. The EDC21-24+ is optimized for 50 ohm systems, but it can be used in non-50 ohm systems with proper impedance matching.
  • Check the power supply voltage, input signal level, and PCB layout. Use a spectrum analyzer to check for spurious signals or harmonics. Consult the datasheet and application notes for troubleshooting guides.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EDC21-24+ Overview

Use the download button to access the EDC21-24+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EDC21, or try a keyword search, such as RF/Microwave Couplers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
