EDC334Z5R5H - Cornell Dubilier

Description: 330 mF (EDLC) Supercapacitor 5.5 V Axial, Can - Horizontal 75Ohm @ 1kHz 1000 Hrs @ 70°C

Download EDC334Z5R5H Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EDC334Z5R5H - Cornell Dubilier - PCB symbol
click to zoom
PCB Footprints

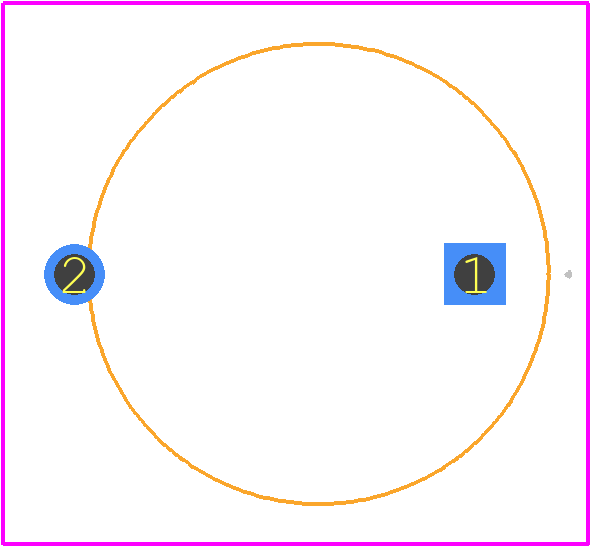

EDC334Z5R5H - Cornell Dubilier PCB footprint - Other - Other - 11.5 x 5.5mm
click to zoom
3D Models
EDC334Z5R5H - Cornell Dubilier - 3D model - Other - 11.5 x 5.5mm
click to zoom

EDC334Z5R5H Details

  • Manufacturer Part Number:

    EDC334Z5R5H

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.29.00.40

  • Manufacturer:

    Knowles CDE

  • YTEOL:

    7

  • Capacitance:

    330000 µF

  • Capacitor Type:

    ELECTRIC DOUBLE LAYER CAPACITOR

  • Diameter:

    11.5 mm

  • Dielectric Material:

    ACTIVATED CARBON

  • Length:

    5.5 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Style:

    Radial

  • Positive Tolerance:

    80%

  • Rated (DC) Voltage (URdc):

    5.5 V

  • Surface Mount:

    NO

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    FLAT

EDC334Z5R5H Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the EDC334Z5R5H is 260°C (500°F) for 10 seconds or less.
  • Yes, the EDC334Z5R5H capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, or cadmium.
  • The derating curve for the EDC334Z5R5H capacitor is typically provided by the manufacturer upon request. It shows the reduction in capacitance and voltage rating as a function of temperature.
  • Yes, the EDC334Z5R5H capacitor is suitable for high-reliability applications, such as aerospace, defense, and medical devices, due to its high-quality construction and rigorous testing.
  • The shelf life of the EDC334Z5R5H capacitor is typically 2 years from the date of manufacture, but it can be extended with proper storage conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EDC334Z5R5H Overview

Use the download button to access the EDC334Z5R5H schematic symbol, PCB footprint, and 3D model.
