EDS474Z5R5C - Cornell Dubilier

Description: Supercapacitors / Ultracapacitors 0.47F 5.5V 85C

Download EDS474Z5R5C Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EDS474Z5R5C - Cornell Dubilier - PCB symbol
click to zoom
PCB Footprints

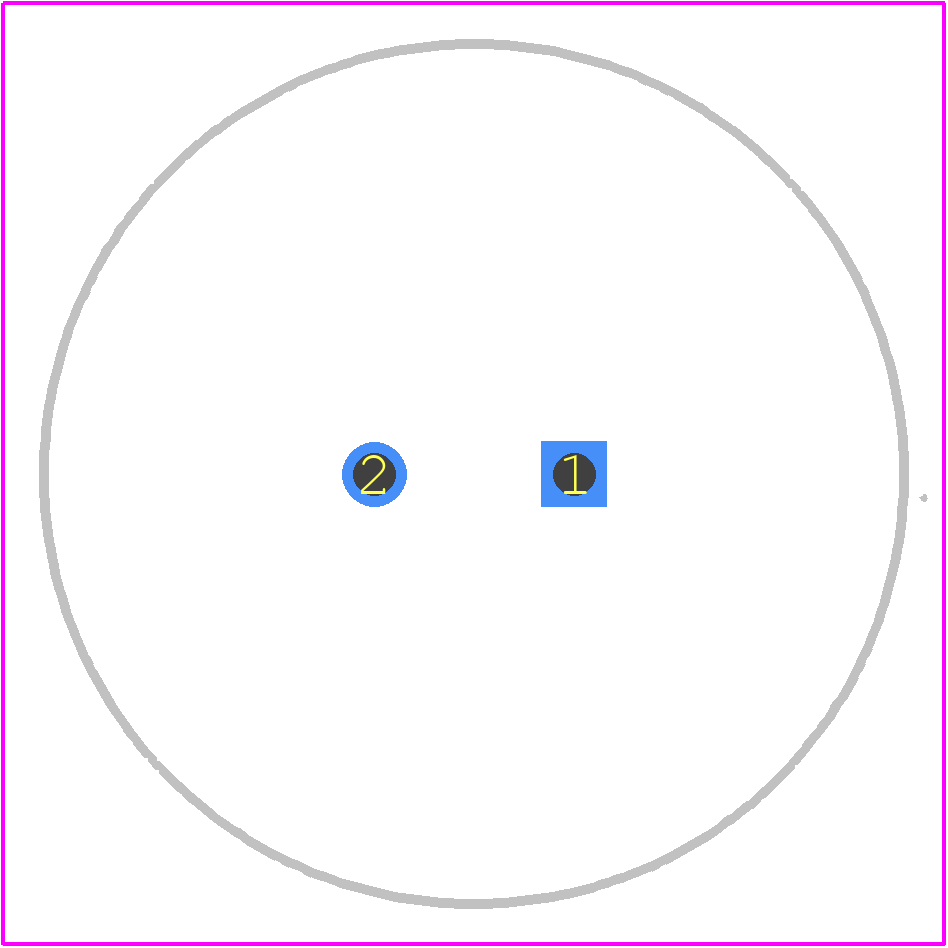

EDS474Z5R5C - Cornell Dubilier PCB footprint - Other - Other - EDS474Z5R5C-3
click to zoom
3D Models
EDS474Z5R5C - Cornell Dubilier - 3D model - Other - EDS474Z5R5C-3
click to zoom

EDS474Z5R5C Details

  • Manufacturer Part Number:

    EDS474Z5R5C

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.29.00.40

  • Manufacturer:

    Knowles CDE

  • YTEOL:

    7

  • Capacitance:

    470000 µF

  • Capacitor Type:

    ELECTRIC DOUBLE LAYER CAPACITOR

  • Diameter:

    21.5 mm

  • Dielectric Material:

    ACTIVATED CARBON

  • Length:

    9.5 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Style:

    Radial

  • Positive Tolerance:

    80%

  • Rated (DC) Voltage (URdc):

    5.5 V

  • Surface Mount:

    NO

  • Terminal Pitch:

    5 mm

  • Terminal Shape:

    FLAT

EDS474Z5R5C Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the EDS474Z5R5C is 260°C (500°F) for 10 seconds or less.
  • Yes, the EDS474Z5R5C is designed for high-reliability applications and meets the requirements of MIL-PRF-123 and MIL-PRF-39006.
  • Yes, the EDS474Z5R5C is designed to withstand high-vibration environments and meets the requirements of MIL-STD-202, Method 204.
  • The shelf life of the EDS474Z5R5C capacitor is 2 years from the date of manufacture, as long as it is stored in its original packaging and under controlled environmental conditions.
  • Yes, the EDS474Z5R5C capacitor is RoHS compliant and meets the requirements of the European Union's Directive 2011/65/EU.
