The recommended land pattern for EEE1CA221P can be found in the Panasonic Electronic Components' recommended land pattern document, which is usually available on their website or through their customer support. The document provides detailed information on the recommended pad size, shape, and spacing for optimal soldering and reliability.
To prevent damage during assembly, it is recommended to handle the EEE1CA221P by the body, avoiding touching the leads or the component's electrical contacts. It is also recommended to use anti-static wrist straps, mats, or other ESD protection devices to prevent electrostatic discharge damage.
The maximum storage temperature for EEE1CA221P is typically 30°C to 40°C, depending on the specific storage conditions. It is recommended to store the components in a dry, cool place, away from direct sunlight and moisture.
The EEE1CA221P is designed to withstand normal vibration levels, but it may not be suitable for high-vibration environments. If you need to use the component in a high-vibration environment, it is recommended to consult with Panasonic Electronic Components' application engineers or perform additional testing to ensure the component's reliability.
The EEE1CA221P is lead-free and RoHS compliant, meaning it does not contain hazardous substances such as lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls (PBB), and polybrominated diphenyl ethers (PBDE) above the maximum allowed levels.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EEE1CA221P Overview

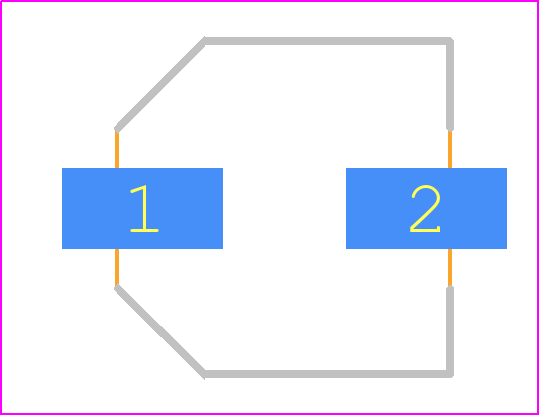

Use the download button to access the EEE1CA221P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EEE1C,
or try a keyword search, such as Ceramic Capacitors
