The recommended land pattern for EEE1HA100AP is a rectangular pad with a size of 2.5mm x 1.5mm, with a solder mask opening of 2.2mm x 1.2mm. It's also recommended to have a solder fillet of 0.2mm to ensure good solder joint reliability.
Yes, EEE1HA100AP is rated for operation up to 125°C, making it suitable for high-temperature applications. However, it's essential to ensure that the component is properly derated to prevent overheating and reduce the risk of failure.
EEE1HA100AP should be stored in a dry, cool place, away from direct sunlight and moisture. It's recommended to store the components in their original packaging or in a sealed bag with desiccant to prevent moisture absorption. During shipping, the components should be protected from mechanical stress and vibration.
Yes, EEE1HA100AP is compatible with lead-free soldering processes. The component is designed to withstand the higher temperatures associated with lead-free soldering, and its terminations are made of a lead-free material.
The recommended reflow profile for EEE1HA100AP is a peak temperature of 260°C, with a dwell time of 20-30 seconds above 220°C. The ramp-up rate should be 3°C/s, and the ramp-down rate should be 6°C/s.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EEE1HA100AP Overview

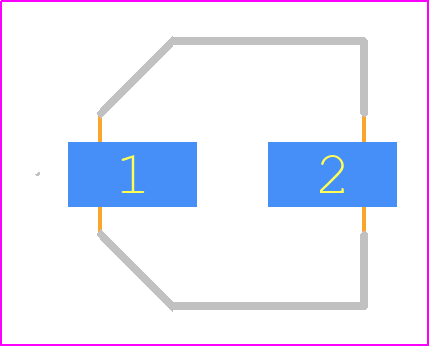

Use the download button to access the EEE1HA100AP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EEE1H,
or try a keyword search, such as Ceramic Capacitors
