Part Image

EEE1HAR22SR - Panasonic

Description: PANASONIC - EEE1HAR22SR - SMD Aluminium Electrolytic Capacitor, Radial Can - SMD, 0.22 µF, 50 V, S Series, 2000 hours @ 85°C

Download ECAD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

PCB Footprints

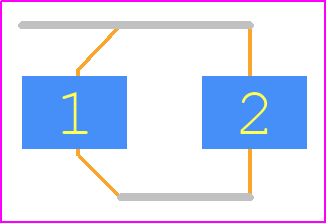

EEE1HAR22SR - Panasonic PCB footprint - Capacitor Al Electrolytic - Capacitor Al Electrolytic - B CASE
click to zoom

3D Models

EEE1HAR22SR - Panasonic  - 3D model - Capacitor Al Electrolytic - B CASE
click to zoom

Risk Rank

EEE1HAR22SR — Panasonic
2.2 - Low Design Risk
Design Risk Rank is determined by in-depth analysis across multiple factors, including part availability, functional equivalents, lifecycle and more. Learn more →

Parts related to EEE1HAR22SR

Showing 0 results

EEE1HAR22SR Alternates

Showing results

Image Part Number Design Risk Rank
Part Image ECEV1HAR22NR Panasonic Electronic Components

Aluminum Electrolytic Capacitor, Non-polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 0.22uF, Surface Mount, 1717, 5.4 MMH CHIP

Part Image UWX1HR22MCL1GB Nichicon Corporation

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 0.22uF, Surface Mount, 1717, 5.5MML CHIP, ROHS COMPLIANT

Part Image EEE1HAR22AR Panasonic Electronic Components

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 0.22uF, Surface Mount, 1717, ROHS COMPLIANT

Part Image UWJ1HR22MCL1GB Nichicon Corporation

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 0.22uF, Surface Mount, 1717, 5.5 MML CHIP, ROHS COMPLIANT
