EEE1VA101UAP - Panasonic

Description: Cap Aluminum Lytic 100uF 35V 20% (8 X 10.2mm) SMD 140mA 1000h 85C Automotive T/R

Download EEE1VA101UAP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EEE1VA101UAP - Panasonic - PCB symbol
click to zoom
PCB Footprints

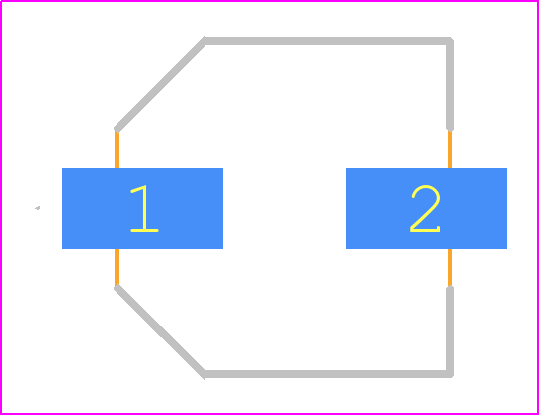

EEE1VA101UAP - Panasonic PCB footprint - Other - Other - SMD_Lytic_F
click to zoom
3D Models
EEE1VA101UAP - Panasonic - 3D model - Other - SMD_Lytic_F
click to zoom

EEE1VA101UAP Details

  • Manufacturer Part Number:

    EEE1VA101UAP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Factory Lead Time:

    21 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    3

  • Capacitance:

    100 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    8 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • Height:

    10.2 mm

  • Leakage Current:

    0.035 mA

  • Length:

    8.3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR, EMBOSSED, 15 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    35 V

  • Reference Standard:

    AEC-Q200

  • Ripple Current:

    140 mA

  • Size Code:

    3333

  • Surface Mount:

    YES

  • Tan Delta:

    0.14

  • Terminal Shape:

    FLAT

  • Width:

    8.3 mm

EEE1VA101UAP Frequently Asked Questions (FAQs)

  • Panasonic recommends a soldering temperature profile with a peak temperature of 260°C (500°F) for a maximum of 10 seconds, and a preheating temperature of 150°C (302°F) to 180°C (356°F) for 60 seconds to 120 seconds.
  • The EEE1VA101UAP capacitor is designed to handle high-frequency noise due to its low equivalent series resistance (ESR) and high resonance frequency. It is suitable for high-frequency applications such as decoupling and filtering.
  • Yes, the EEE1VA101UAP capacitor is AEC-Q200 qualified, which means it meets the stringent requirements for automotive applications, including high reliability, high temperature, and vibration resistance.
  • The EEE1VA101UAP capacitor has an MSL rating of 2a, which means it can withstand exposure to moisture for up to 4 days at 30°C (86°F) and 60% relative humidity without requiring baking before reflow soldering.
  • Yes, the EEE1VA101UAP capacitor is rated for operation up to 125°C (257°F), making it suitable for high-temperature applications such as automotive, industrial, and aerospace.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EEE1VA101UAP Overview

Use the download button to access the EEE1VA101UAP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EEE1V, or try a keyword search, such as Ceramic Capacitors
