EEEFC1A101AP - Panasonic

Description: PANASONIC - EEEFC1A101AP - SMD Aluminium Electrolytic Capacitor, Radial Can - SMD, 100 µF, 10 V, EEEFC Series

Download EEEFC1A101AP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EEEFC1A101AP - Panasonic - PCB symbol
click to zoom

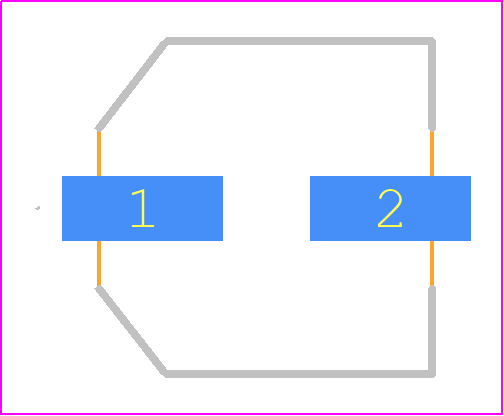

PCB Footprints
EEEFC1A101AP - Panasonic PCB footprint - Other - Other - SMD_Lytic_E
click to zoom
3D Models
EEEFC1A101AP - Panasonic - 3D model - Other - SMD_Lytic_E
click to zoom

EEEFC1A101AP Details

  • Manufacturer Part Number:

    EEEFC1A101AP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Factory Lead Time:

    21 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    3

  • Capacitance:

    100 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    8 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • Height:

    6.2 mm

  • Leakage Current:

    0.01 mA

  • Length:

    8.3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR, EMBOSSED, 15 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    10 V

  • Reference Standard:

    AEC-Q200

  • Ripple Current:

    172.5 mA

  • Size Code:

    3333

  • Surface Mount:

    YES

  • Tan Delta:

    0.19

  • Terminal Shape:

    FLAT

  • Width:

    8.3 mm
