EEEFC1C470AP - Panasonic

Description: PANASONIC - EEEFC1C470AP - SMD Aluminium Electrolytic Capacitor, Radial Can - SMD, 47 µF, 16 V, EEEFC Series

Download EEEFC1C470AP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EEEFC1C470AP - Panasonic - PCB symbol
click to zoom
PCB Footprints

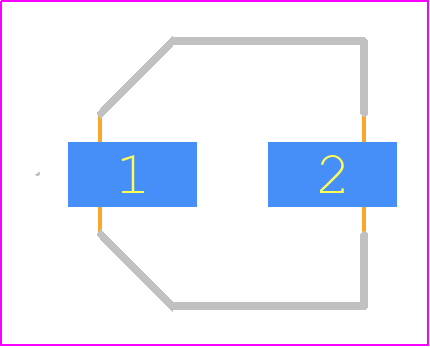

EEEFC1C470AP - Panasonic PCB footprint - Other - Other - SMD_Lytic_D
click to zoom
3D Models
EEEFC1C470AP - Panasonic - 3D model - Other - SMD_Lytic_D
click to zoom

EEEFC1C470AP Details

  • Manufacturer Part Number:

    EEEFC1C470AP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Factory Lead Time:

    21 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    3

  • Capacitance:

    47 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    6.3 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • Height:

    5.4 mm

  • Leakage Current:

    0.0075 mA

  • Length:

    6.6 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR, EMBOSSED, 15 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    16 V

  • Reference Standard:

    AEC-Q200

  • Ripple Current:

    105 mA

  • Size Code:

    2626

  • Surface Mount:

    YES

  • Tan Delta:

    0.16

  • Terminal Shape:

    FLAT

  • Width:

    6.6 mm

EEEFC1C470AP Frequently Asked Questions (FAQs)

  • The recommended land pattern for EEEFC1C470AP can be found in the Panasonic Electronic Components' recommended footprint document or by contacting their technical support. A general guideline is to use a land pattern with a pad size of 2.5mm x 1.5mm and a spacing of 1.5mm between pads.
  • The EEEFC1C470AP is a moisture-sensitive device and should be handled according to the JEDEC J-STD-033 standard. This includes storing the components in a dry environment, using a dry pack or nitrogen-filled packaging, and baking the components before reflow soldering if they have been exposed to moisture.
  • The maximum reflow temperature for EEEFC1C470AP is 260°C, with a peak temperature of 250°C. It is recommended to follow the reflow profile recommended by Panasonic Electronic Components or a similar profile to ensure reliable soldering.
  • The EEEFC1C470AP is a ceramic capacitor and can be used in high-vibration environments. However, it is recommended to follow the recommended mounting and soldering guidelines to ensure reliable operation. Additionally, it is recommended to perform vibration testing to ensure the capacitor meets the required specifications.
  • The equivalent series resistance (ESR) of the EEEFC1C470AP can be determined by measuring the impedance of the capacitor at high frequencies (e.g. 100 kHz) using an impedance analyzer or a network analyzer. The ESR can also be calculated using the capacitor's datasheet values and the following formula: ESR = (ESL / (2 * π * f * C)), where ESL is the equivalent series inductance, f is the frequency, and C is the capacitance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EEEFC1C470AP Overview

Use the download button to access the EEEFC1C470AP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EEEFC, or try a keyword search, such as Ceramic Capacitors
