EEEFK0J332AQ - Panasonic

Description: PANASONIC - EEEFK0J332AQ - SMD Aluminium Electrolytic Capacitor, Radial Can - SMD, 3300 µF, 6.3 V, FK Series

Download EEEFK0J332AQ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EEEFK0J332AQ - Panasonic - PCB symbol
click to zoom

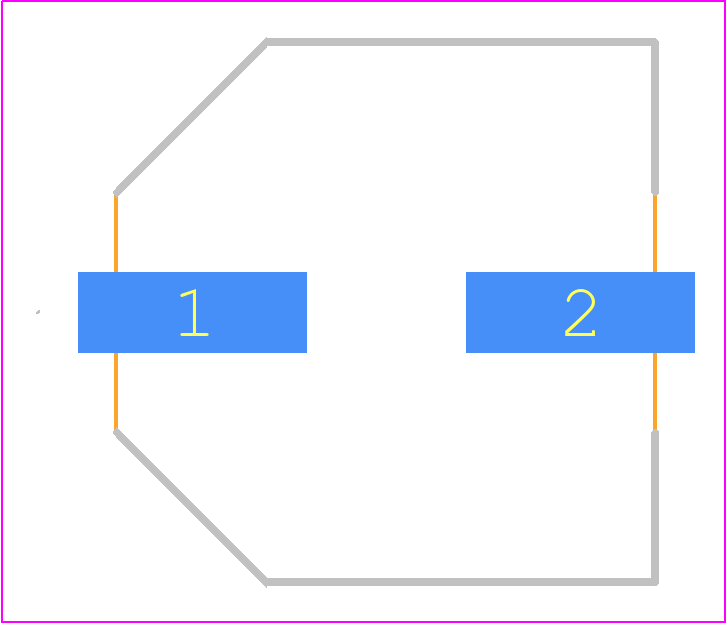

PCB Footprints
EEEFK0J332AQ - Panasonic PCB footprint - Other - Other - SMD_Lytic_H13
click to zoom
3D Models
EEEFK0J332AQ - Panasonic - 3D model - Other - SMD_Lytic_H13
click to zoom

EEEFK0J332AQ Details

  • Manufacturer Part Number:

    EEEFK0J332AQ

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    7

  • Capacitance:

    3300 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    12.5 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • Height:

    13.5 mm

  • Leakage Current:

    0.2079 mA

  • Length:

    13.5 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR, Embossed, 13 Inch

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    6.3 V

  • Reference Standard:

    AEC-Q200

  • Ripple Current:

    825 mA

  • Size Code:

    5353

  • Surface Mount:

    YES

  • Tan Delta:

    0.30

  • Terminal Shape:

    FLAT

  • Width:

    13.5 mm

EEEFK0J332AQ Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for EEEFK0J332AQ is 260°C (500°F) for 10 seconds or less, to prevent damage to the capacitor.
  • Yes, EEEFK0J332AQ is designed to withstand high vibrations and is suitable for use in applications with mechanical stress, such as automotive and industrial systems.
  • The ESR of EEEFK0J332AQ is relatively low, which means it can handle high-frequency signals and reduce energy losses, making it suitable for high-performance applications.
  • Yes, EEEFK0J332AQ is compatible with lead-free soldering processes and meets the requirements of the RoHS (Restriction of Hazardous Substances) directive.
  • The maximum operating temperature range for EEEFK0J332AQ is -55°C to 125°C (-133°F to 257°F), making it suitable for use in a wide range of applications.
