EEEFK1A102GP - Panasonic

Description: PANASONIC - EEEFK1A102GP - SMD Aluminium Electrolytic Capacitor, Radial Can - SMD, 1000 µF, 10 V, FK Series

Download EEEFK1A102GP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EEEFK1A102GP - Panasonic - PCB symbol
click to zoom

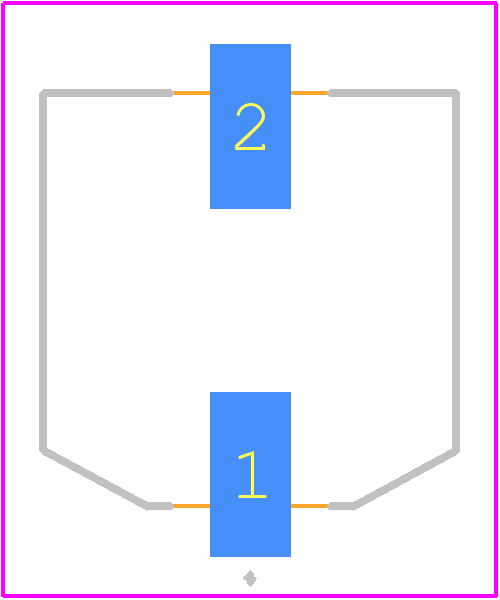

PCB Footprints
EEEFK1A102GP - Panasonic PCB footprint - Other - Other - G
click to zoom
3D Models
EEEFK1A102GP - Panasonic - 3D model - Other - G
click to zoom

EEEFK1A102GP Details

  • Manufacturer Part Number:

    EEEFK1A102GP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Factory Lead Time:

    21 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    7

  • Capacitance:

    1000 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Dielectric Material:

    ALUMINUM (WET)

  • Height:

    10.2 mm

  • Leakage Current:

    0.1 mA

  • Length:

    10.3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Style:

    SMT

  • Packing Method:

    TR, EMBOSSED, 15 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    10 V

  • Reference Standard:

    AEC-Q200

  • Ripple Current:

    637.5 mA

  • Size Code:

    4141

  • Surface Mount:

    YES

  • Tan Delta:

    0.19

  • Terminal Shape:

    FLAT

  • Width:

    10.3 mm

EEEFK1A102GP Frequently Asked Questions (FAQs)

  • The recommended land pattern for EEEFK1A102GP is a rectangular pad with a size of 2.5mm x 1.5mm, with a solder mask opening of 2.2mm x 1.2mm. It's also recommended to have a solder fillet of 0.5mm on each side.
  • While EEEFK1A102GP has a rated operating temperature range of -40°C to 105°C, it's not recommended to use it in extreme high-temperature environments (above 125°C) for extended periods. This may affect the capacitor's reliability and lifespan.
  • To prevent damage during PCB assembly, handle EEEFK1A102GP by the edges or use a vacuum pick-up tool. Avoid touching the capacitor's terminals or body, as the oils from human skin can affect the capacitor's performance.
  • While EEEFK1A102GP has a moisture sensitivity level of 3, it's still recommended to take precautions when using it in humid environments. Consider applying a conformal coating or using a moisture-resistant encapsulant to protect the capacitor.
  • The ESR of EEEFK1A102GP is approximately 0.5 ohms at 100 kHz. This value may vary depending on the frequency and operating conditions.
