EEEFK1E151AP - Panasonic

Description: Panasonic 150µF 25V dc Aluminium Electrolytic Capacitor, Surface Mount 6.3 (Dia.) x 10.2mm +105°C 6.3mm

Download EEEFK1E151AP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EEEFK1E151AP - Panasonic - PCB symbol
click to zoom
PCB Footprints

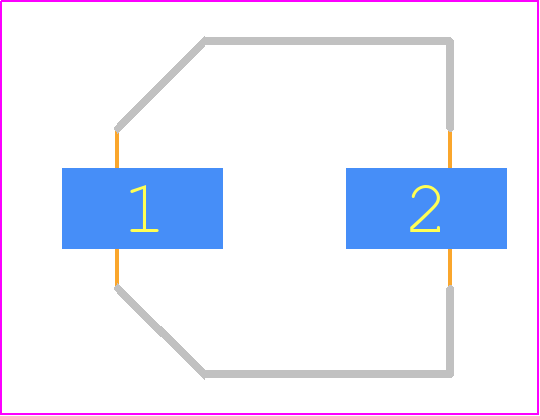

EEEFK1E151AP - Panasonic PCB footprint - Other - Other - SMD_Lytic_F
click to zoom
3D Models
EEEFK1E151AP - Panasonic - 3D model - Other - SMD_Lytic_F
click to zoom

EEEFK1E151AP Details

  • Manufacturer Part Number:

    EEEFK1E151AP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Malaysia

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    21 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    7

  • Capacitance:

    150 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Dielectric Material:

    ALUMINUM (WET)

  • Height:

    10.2 mm

  • Leakage Current:

    0.0375 mA

  • Length:

    8.3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR, EMBOSSED, 15 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    25 V

  • Reference Standard:

    AEC-Q200

  • Ripple Current:

    390 mA

  • Size Code:

    3333

  • Surface Mount:

    YES

  • Tan Delta:

    0.14

  • Terminal Shape:

    FLAT

  • Width:

    8.3 mm

EEEFK1E151AP Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) for 10 seconds or less, to prevent damage to the capacitor.
  • Yes, the EEEFK1E151AP is designed to withstand vibrations up to 10Hz to 2000Hz, 1.5mm double amplitude, making it suitable for use in high-vibration environments.
  • The EEEFK1E151AP has a moisture resistance rating of 85°C/85% RH, making it suitable for use in humid environments. However, it's still important to follow proper storage and handling procedures to prevent moisture absorption.
  • The ESR of the EEEFK1E151AP is approximately 0.015Ω at 100kHz, which is relatively low and suitable for high-frequency applications.
  • The EEEFK1E151AP has a maximum operating temperature of 125°C, making it suitable for use in high-temperature environments. However, the capacitor's lifespan may be affected by prolonged exposure to high temperatures.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EEEFK1E151AP Overview

Use the download button to access the EEEFK1E151AP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EEEFK, or try a keyword search, such as Ceramic Capacitors

Parts related to EEEFK1E151AP

Showing 0 results
