EEEFK1K3R3R - Panasonic

Description: Panasonic Aluminium Electrolytic Capacitor 3.3μF 80V dc 5mm Surface Mount C FK SMD Series +105°C

Download EEEFK1K3R3R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EEEFK1K3R3R - Panasonic - PCB symbol
click to zoom
PCB Footprints

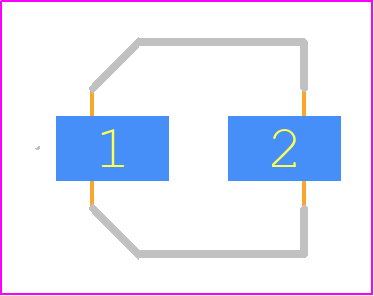

EEEFK1K3R3R - Panasonic PCB footprint - Other - Other - SMD_Lytic_C
click to zoom
3D Models
EEEFK1K3R3R - Panasonic - 3D model - Other - SMD_Lytic_C
click to zoom

EEEFK1K3R3R Details

  • Manufacturer Part Number:

    EEEFK1K3R3R

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Factory Lead Time:

    21 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    7

  • Capacitance:

    3.3 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Dielectric Material:

    ALUMINUM (WET)

  • Height:

    5.8 mm

  • Leakage Current:

    0.003 mA

  • Length:

    5.3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Style:

    SMT

  • Packing Method:

    TR, EMBOSSED, 15 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    80 V

  • Reference Standard:

    AEC-Q200

  • Ripple Current:

    18.75 mA

  • Size Code:

    2121

  • Surface Mount:

    YES

  • Tan Delta:

    0.08

  • Terminal Finish:

    Tin/Bismuth (Sn/Bi)

  • Terminal Shape:

    FLAT

  • Width:

    5.3 mm

EEEFK1K3R3R Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) for 3 seconds or less, to prevent damage to the capacitor.
  • Yes, the EEEFK1K3R3R is a high-frequency capacitor, suitable for applications up to 100 MHz. However, it's essential to consider the capacitor's impedance and ESR at the operating frequency.
  • The EEEFK1K3R3R capacitor is rated for operation up to 125°C. However, the capacitance and ESR may change significantly above 85°C. It's essential to consider the temperature derating and ensure the capacitor meets the application's requirements.
  • The ESR of the EEEFK1K3R3R capacitor is typically around 30-50 mΩ at 100 kHz. However, this value may vary depending on the frequency and temperature.
  • Yes, the EEEFK1K3R3R capacitor is RoHS and REACH compliant, making it suitable for use in environmentally friendly and sustainable designs.
