Part Image

EEEFK2A221AM - Panasonic

Description: CAP, 220µF, 100V, RADIAL, SMD; AE Capacitor Case:Radial Can - SMD; Capacitance:220µF; Voltage Rating:100V; ESR:-; Product Range:FK Series; Lifetime @ Temperature:5000 hours @ 105°C; Operating Temperature Min:-55°C; Operating RoHS Compliant: Yes

Download EEEFK2A221AM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EEEFK2A221AM - Panasonic - PCB symbol
click to zoom

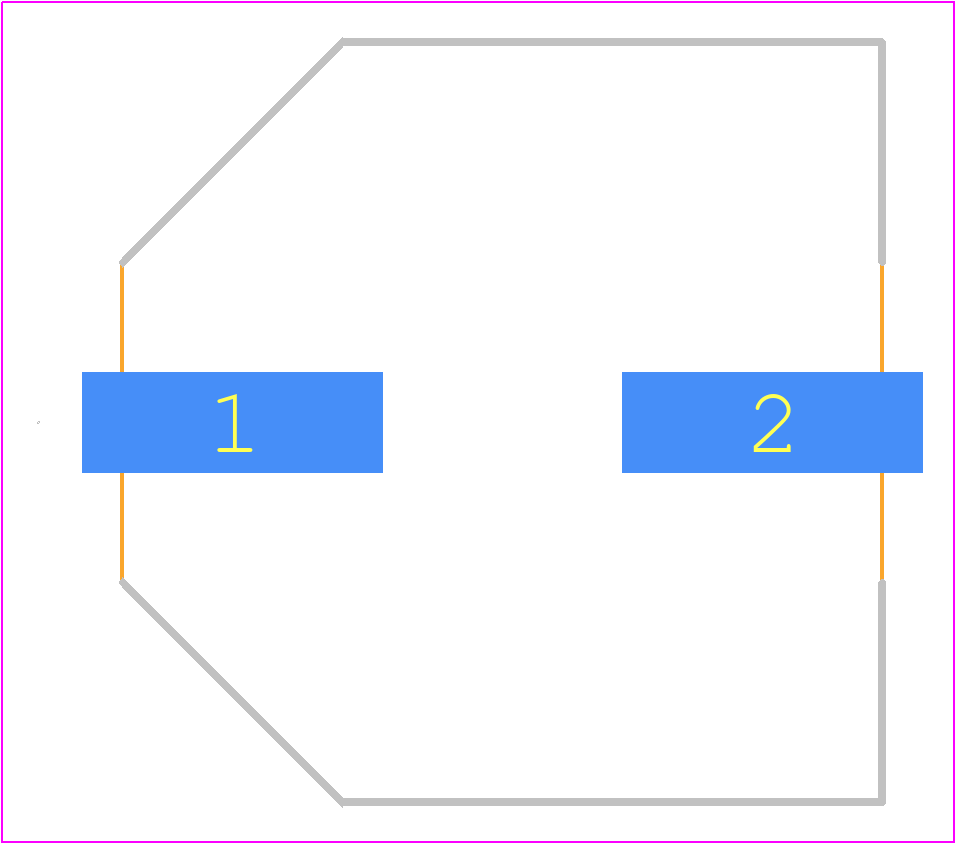

PCB Footprints
EEEFK2A221AM - Panasonic PCB footprint - Other - Other - SMD_Lytic_K16
click to zoom
3D Models
EEEFK2A221AM - Panasonic - 3D model - Other - SMD_Lytic_K16
click to zoom

EEEFK2A221AM Details

  • Manufacturer Part Number:

    EEEFK2A221AM

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    7

  • Capacitance:

    220 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    18 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • Height:

    16.5 mm

  • Leakage Current:

    0.22 mA

  • Length:

    19 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR, Embossed, 13 Inch

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    100 V

  • Reference Standard:

    AEC-Q200

  • Ripple Current:

    687.75 mA

  • Size Code:

    7575

  • Surface Mount:

    YES

  • Tan Delta:

    0.07

  • Terminal Shape:

    FLAT

  • Width:

    19 mm

EEEFK2A221AM Frequently Asked Questions (FAQs)

  • The recommended land pattern for EEEFK2A221AM is a rectangular pad with a size of 3.5mm x 2.5mm, with a 0.5mm radius corner and a 0.3mm solder mask clearance.
  • While EEEFK2A221AM has a rated operating temperature range of -40°C to 105°C, it's not recommended to use it in extreme high-temperature environments (>125°C) without proper derating and thermal management.
  • Store EEEFK2A221AM in a dry, cool place away from direct sunlight and moisture. Avoid bending, flexing, or applying excessive pressure to the component during shipping and handling.
  • Yes, EEEFK2A221AM is compatible with lead-free soldering processes, but ensure that the soldering temperature and time are within the recommended specifications to avoid damage to the component.
  • The recommended reflow profile for EEEFK2A221AM is a peak temperature of 260°C, with a ramp-up rate of 3°C/s, a dwell time of 30-60 seconds, and a cool-down rate of 6°C/s.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EEEFK2A221AM Overview

Use the download button to access the EEEFK2A221AM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EEEFK, or try a keyword search, such as Ceramic Capacitors
