EEEFN1E220R - Panasonic

EEEFN1E220R Frequently Asked Questions (FAQs)

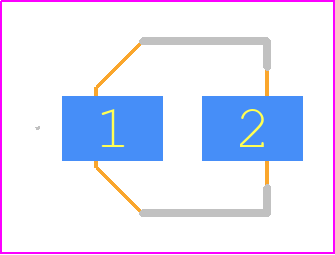

• What is the recommended land pattern for EEEFN1E220R?
  The recommended land pattern for EEEFN1E220R can be found in the Panasonic Electronic Components' recommended footprint document or by contacting their technical support. A general guideline is to follow the IPC-7351 standard for surface mount components.
• How do I handle the EEEFN1E220R during assembly to prevent damage?
  To prevent damage, handle the EEEFN1E220R by the body, avoid touching the leads or components, and use anti-static wrist straps or mats. Follow standard ESD handling procedures to prevent electrostatic discharge damage.
• What is the maximum allowable voltage derating for EEEFN1E220R?
  The maximum allowable voltage derating for EEEFN1E220R is typically 80% of the rated voltage. However, it's recommended to consult with Panasonic Electronic Components' technical support or application notes for specific derating guidelines.
• Can I use EEEFN1E220R in high-temperature applications?
  EEEFN1E220R is rated for operation up to 105°C. However, it's essential to consider the component's temperature derating, PCB material, and surrounding components' temperature tolerance when designing for high-temperature applications.
• How do I determine the equivalent series resistance (ESR) of EEEFN1E220R?
  The ESR of EEEFN1E220R can be determined by measuring the impedance of the capacitor at high frequencies (e.g., 100 kHz) using an impedance analyzer or a vector network analyzer. The ESR value can also be obtained from Panasonic Electronic Components' technical support or application notes.
