The recommended land pattern for EEEFN1H330V is a rectangular pad with a size of 3.3mm x 1.6mm, with a solder mask opening of 2.3mm x 1.2mm. The land pattern should be designed to accommodate the component's lead-free terminations.
To handle the ESD sensitivity of EEEFN1H330V, it is recommended to follow proper ESD handling procedures, such as using an ESD wrist strap or mat, and storing the components in an ESD-protective package. Additionally, the component should be soldered onto the PCB as soon as possible to minimize exposure to ESD.
The maximum allowable voltage derating for EEEFN1H330V is 80% of the rated voltage, which is 330V. Therefore, the maximum allowable voltage derating is 264V.
The EEEFN1H330V is rated for operation up to 125°C. However, the component's performance and lifespan may be degraded at high temperatures. It is recommended to consult with Panasonic's application engineers to ensure the component meets the specific requirements of your application.
The ESR of EEEFN1H330V can be determined by measuring the impedance of the component at a specific frequency, typically 100 kHz. The ESR can also be calculated using the component's capacitance and dissipation factor values provided in the datasheet.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EEEFN1H330V Overview

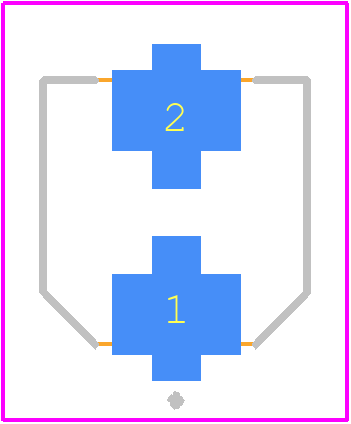

Use the download button to access the EEEFN1H330V schematic symbol, PCB footprint, and 3D model.
