EEEHB1H3R3R - Panasonic

Description: PANASONIC - EEEHB1H3R3R - SMD Aluminium Electrolytic Capacitor, Radial Can - SMD, 3.3 µF, 50 V, HB Series, 2000 hours @ 105°C

Download EEEHB1H3R3R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EEEHB1H3R3R - Panasonic - PCB symbol
click to zoom

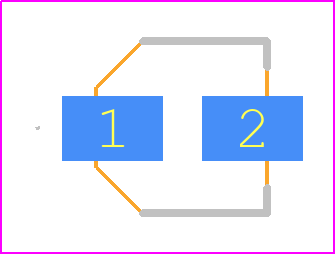

PCB Footprints
EEEHB1H3R3R - Panasonic PCB footprint - Other - Other - SMD_Lytic_B
click to zoom
3D Models
EEEHB1H3R3R - Panasonic - 3D model - Other - SMD_Lytic_B
click to zoom

EEEHB1H3R3R Details

  • Manufacturer Part Number:

    EEEHB1H3R3R

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Malaysia

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    21 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    7

  • Capacitance:

    3.3 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Dielectric Material:

    ALUMINUM (WET)

  • Height:

    5.8 mm

  • Leakage Current:

    0.003 mA

  • Length:

    4.3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Style:

    SMT

  • Packing Method:

    TR, EMBOSSED, 15 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    50 V

  • Reference Standard:

    AEC-Q200

  • Ripple Current:

    16 mA

  • Size Code:

    1717

  • Surface Mount:

    YES

  • Tan Delta:

    0.12

  • Terminal Shape:

    FLAT

  • Width:

    4.3 mm

EEEHB1H3R3R Frequently Asked Questions (FAQs)

  • Panasonic recommends a soldering temperature profile with a peak temperature of 260°C (500°F) for a maximum of 10 seconds, with a ramp-up rate of 3°C/s (5.4°F/s) and a ramp-down rate of 6°C/s (10.8°F/s).
  • The EEEHB1H3R3R capacitor is designed to handle high-frequency noise due to its low equivalent series resistance (ESR) and high resonance frequency. It is suitable for decoupling and filtering applications in high-frequency circuits.
  • Yes, the EEEHB1H3R3R capacitor is AEC-Q200 qualified, which means it meets the stringent requirements for automotive applications, including high reliability, high temperature, and vibration resistance.
  • The EEEHB1H3R3R capacitor has an MSL rating of 3, which means it can withstand exposure to moisture for up to 168 hours at 30°C (86°F) and 60% relative humidity without requiring special handling or storage.
  • Yes, the EEEHB1H3R3R capacitor is rated for operation up to 125°C (257°F), making it suitable for high-temperature applications such as automotive, industrial, and aerospace systems.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EEEHB1H3R3R Overview

Use the download button to access the EEEHB1H3R3R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EEEHB, or try a keyword search, such as Ceramic Capacitors
