EEEHC0J221XP - Panasonic

Description: PANASONIC - EEEHC0J221XP - SMD Aluminium Electrolytic Capacitor, Radial Can - SMD, 220 µF, 6.3 V, HC Series

Download EEEHC0J221XP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EEEHC0J221XP - Panasonic - PCB symbol
click to zoom
PCB Footprints

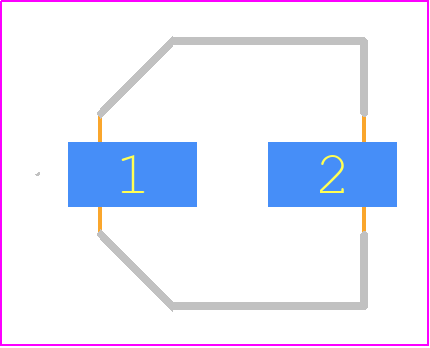

EEEHC0J221XP - Panasonic PCB footprint - Other - Other - SMD_Lytic_D8
click to zoom
3D Models
EEEHC0J221XP - Panasonic - 3D model - Other - SMD_Lytic_D8
click to zoom

EEEHC0J221XP Details

  • Manufacturer Part Number:

    EEEHC0J221XP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Factory Lead Time:

    21 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    7

  • Capacitance:

    220 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    6.3 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • Height:

    7.7 mm

  • JESD-609 Code:

    e6

  • Leakage Current:

    0.01386 mA

  • Length:

    6.6 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR, EMBOSSED, 15 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    6.3 V

  • Reference Standard:

    AEC-Q200

  • Ripple Current:

    101 mA

  • Size Code:

    2626

  • Surface Mount:

    YES

  • Tan Delta:

    0.3

  • Terminal Finish:

    Tin/Bismuth (Sn/Bi)

  • Terminal Shape:

    FLAT

  • Width:

    6.6 mm

EEEHC0J221XP Frequently Asked Questions (FAQs)

  • The recommended land pattern for EEEHC0J221XP can be found in the Panasonic Electronic Components' recommended footprint document or by contacting their technical support team.
  • Handle the EEEHC0J221XP by the tabs or body, avoid touching the leads or components, and use anti-static precautions to prevent ESD damage.
  • The maximum storage temperature for EEEHC0J221XP is typically 30°C to 40°C, but it's recommended to check the datasheet or contact Panasonic Electronic Components for specific storage conditions.
  • EEEHC0J221XP is designed for general-purpose use, but it may not be suitable for high-vibration environments. Consult with Panasonic Electronic Components or a reliability engineer to determine its suitability for your specific application.
  • The ESR of EEEHC0J221XP can be determined by measuring the impedance of the capacitor at high frequencies (e.g., 100 kHz) using an impedance analyzer or by consulting the datasheet for typical ESR values.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EEEHC0J221XP Overview

Use the download button to access the EEEHC0J221XP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EEEHC, or try a keyword search, such as Ceramic Capacitors
