Panasonic recommends a soldering temperature profile with a peak temperature of 260°C (500°F) for a maximum of 10 seconds, with a ramp-up rate of 3°C/s (5.4°F/s) and a ramp-down rate of 6°C/s (10.8°F/s).
The EEEHD1E4R7AR capacitor is designed to handle high-frequency noise due to its low equivalent series resistance (ESR) and high resonance frequency. It is suitable for high-frequency circuits and can help reduce electromagnetic interference (EMI).
Yes, the EEEHD1E4R7AR capacitor meets the requirements for automotive applications, including AEC-Q200 qualification, and is suitable for use in automotive systems, such as infotainment, navigation, and powertrain systems.
The EEEHD1E4R7AR capacitor has an MSL rating of 2a, which means it can withstand exposure to moisture for up to 4 weeks at 30°C (86°F) and 60% relative humidity without requiring baking before reflow soldering.
Yes, the EEEHD1E4R7AR capacitor is rated for operation up to 125°C (257°F) and can be used in high-temperature applications, such as in automotive, industrial, and aerospace systems.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EEEHD1E4R7AR Overview

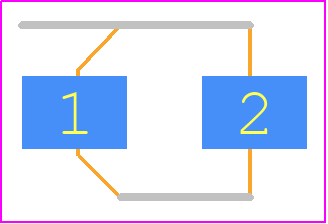

Use the download button to access the EEEHD1E4R7AR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EEEHD,
or try a keyword search, such as Ceramic Capacitors
