The recommended land pattern for EEETC1E331UP can be found in Panasonic's recommended footprint document or by consulting with a PCB design expert. A general guideline is to use a land pattern with a pad size of 2.5mm x 1.5mm and a spacing of 1.5mm between pads.
To ensure proper thermal management, it is recommended to provide a thermal pad on the PCB under the EEETC1E331UP, and to use a thermal interface material (TIM) with a thermal conductivity of at least 1 W/m-K. Additionally, ensure good airflow around the component and avoid blocking the airflow with nearby components.
The derating curve for EEETC1E331UP can be obtained by contacting Panasonic's technical support or by consulting with a reliability engineer. A general guideline is to derate the component's capacitance by 1-2% per 10°C above the rated temperature of 105°C.
EEETC1E331UP is designed to withstand moderate vibration levels. However, for high-vibration environments, it is recommended to consult with a mechanical engineer to ensure the component is properly secured and to evaluate the PCB's mechanical integrity. Additional testing may be required to ensure the component's reliability.
To ensure the reliability of EEETC1E331UP in a humid environment, it is recommended to apply a conformal coating to the PCB, use a moisture-resistant encapsulant, and ensure the component is stored in a dry environment prior to assembly. Additionally, consider using a humidity sensor to monitor the environment and take corrective action if necessary.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EEETC1E331UP Overview

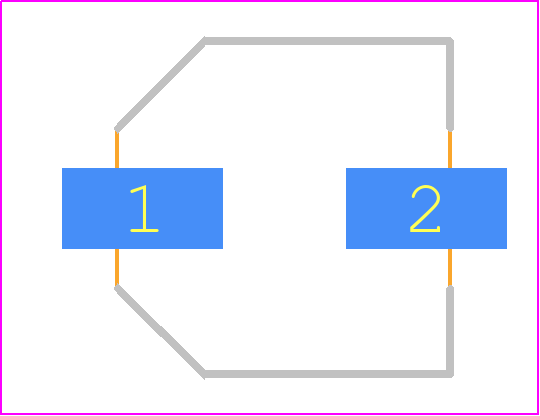

Use the download button to access the EEETC1E331UP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EEETC,
or try a keyword search, such as Ceramic Capacitors
