EEETC1V331UP - Panasonic

EEETC1V331UP Frequently Asked Questions (FAQs)

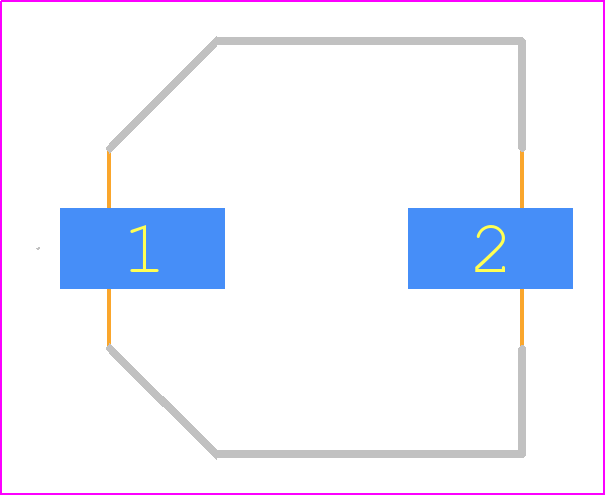

• What is the recommended land pattern for EEETC1V331UP?
  The recommended land pattern for EEETC1V331UP can be found in the Panasonic Electronic Components' recommended footprint document or by contacting their technical support. A general guideline is to follow the IPC-7351 standard for surface-mount components.
• How do I handle the ESR (Equivalent Series Resistance) of EEETC1V331UP in my design?
  The ESR of EEETC1V331UP is typically specified in the datasheet. To handle ESR in your design, consider using a capacitor with a low ESR value, and ensure that the PCB layout and component placement minimize parasitic inductance and resistance. You can also use simulation tools to model the ESR and optimize your design.
• Can I use EEETC1V331UP in a high-temperature environment?
  The EEETC1V331UP is rated for operation up to 125°C. However, it's essential to consider the derating curves and temperature coefficients specified in the datasheet to ensure the capacitor's performance and reliability in high-temperature environments. You may also need to consult with Panasonic's technical support for specific guidance.
• How do I select the correct voltage rating for EEETC1V331UP in my design?
  Select a voltage rating that is at least 1.5 to 2 times the maximum operating voltage in your design. Consider the voltage derating curves and ensure that the capacitor's voltage rating is sufficient to handle any voltage spikes or transients in your application.
• What is the recommended soldering profile for EEETC1V331UP?
  The recommended soldering profile for EEETC1V331UP can be found in the Panasonic Electronic Components' soldering guidelines document or by contacting their technical support. A general guideline is to follow the IPC-J-STD-020 standard for soldering electronic components.
