EEETG1V470P - Panasonic

Description: Aluminum Electrolytic Capacitors - SMD 47UF 35V ELECT TG SMD

Download EEETG1V470P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EEETG1V470P - Panasonic - PCB symbol
click to zoom

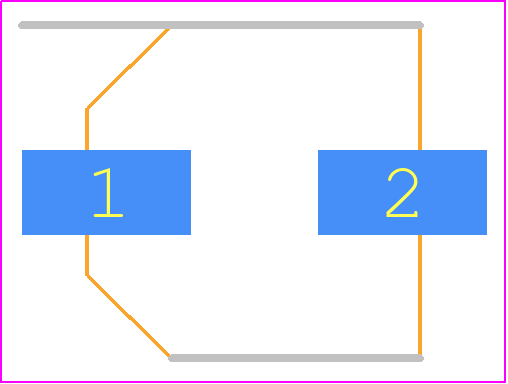

PCB Footprints
EEETG1V470P - Panasonic PCB footprint - Capacitor Al Electrolytic - Capacitor Al Electrolytic - size code f
click to zoom
3D Models
EEETG1V470P - Panasonic - 3D model - Capacitor Al Electrolytic - size code f
click to zoom

EEETG1V470P Details

  • Manufacturer Part Number:

    EEETG1V470P

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Factory Lead Time:

    21 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    7

  • Additional Feature:

    ESR is MEASURED AT 100KHZ,

  • Capacitance:

    47 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    8 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    500 mΩ

  • Height:

    10.2 mm

  • Leakage Current:

    0.01645 mA

  • Length:

    8.3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR, EMBOSSED, 15 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    35 V

  • Reference Standard:

    AEC-Q200

  • Ripple Current:

    128.05 mA

  • Size Code:

    3333

  • Surface Mount:

    YES

  • Tan Delta:

    0.16

  • Terminal Shape:

    FLAT

  • Width:

    8.3 mm

EEETG1V470P Frequently Asked Questions (FAQs)

  • The recommended land pattern for EEETG1V470P can be found in Panasonic's recommended footprint document or by consulting with a PCB design expert. A general guideline is to use a land pattern with a pad size of 2.5mm x 1.5mm and a spacing of 1.5mm between pads.
  • The EEETG1V470P has a polarity marker on the capacitor body, indicating the positive leg. Ensure that the positive leg is connected to the correct polarity in your circuit design and PCB layout.
  • The derating curve for the EEETG1V470P can be obtained by contacting Panasonic's technical support or by consulting with an experienced engineer. A general guideline is to derate the capacitor's voltage rating by 10-20% for every 10°C increase above the rated temperature.
  • The EEETG1V470P is designed to withstand moderate vibration levels. However, for high-vibration environments, it's recommended to consult with Panasonic's technical support or consider using a capacitor with specific vibration-resistant features.
  • Store the EEETG1V470P in a cool, dry place away from direct sunlight and moisture. Handle the capacitors by the body, avoiding touching the leads or terminals to prevent damage from electrostatic discharge.
