EEFCS0J680R - Panasonic

EEFCS0J680R Frequently Asked Questions (FAQs)

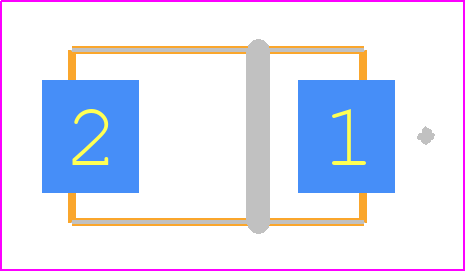

• What is the recommended land pattern for EEFCS0J680R?
  The recommended land pattern for EEFCS0J680R can be found in the Panasonic recommended land pattern document or by contacting Panasonic technical support. The land pattern should be designed to ensure good solderability and to prevent thermal stress on the component.
• How do I handle the EEFCS0J680R during assembly to prevent damage?
  Handle the EEFCS0J680R by the body, avoiding touching the leads or the capacitor's electrical contacts. Use anti-static wrist straps, mats, or other ESD protection methods to prevent electrostatic discharge damage. Avoid bending or flexing the leads, and ensure the component is properly seated on the PCB during assembly.
• What is the derating curve for EEFCS0J680R at high temperatures?
  The derating curve for EEFCS0J680R can be obtained by contacting Panasonic technical support or by referring to the Panasonic capacitor selection guide. The derating curve provides information on the maximum allowable capacitance and voltage ratings at elevated temperatures.
• Can I use EEFCS0J680R in a high-vibration environment?
  EEFCS0J680R is designed to withstand moderate vibration levels. However, for high-vibration environments, it is recommended to consult with Panasonic technical support to determine the suitability of the component. Additional testing or specialized mounting methods may be required to ensure reliability.
• What is the equivalent series resistance (ESR) of EEFCS0J680R?
  The ESR of EEFCS0J680R is not explicitly stated in the datasheet. However, it can be estimated based on the capacitor's impedance characteristics. Contact Panasonic technical support for more information or refer to the Panasonic capacitor selection guide for ESR data on similar components.
