EEHAZA1J680B - Panasonic

Description: Aluminum Electrolytic Capacitors, Panasonic,68uf,63v

Download EEHAZA1J680B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EEHAZA1J680B - Panasonic - PCB symbol
click to zoom
PCB Footprints

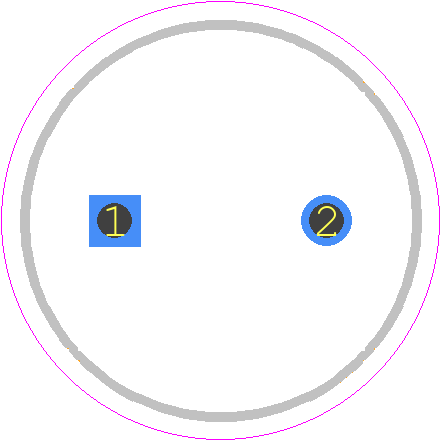

EEHAZA1J680B - Panasonic PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 10*9.5
click to zoom
3D Models
EEHAZA1J680B - Panasonic - 3D model - Capacitor, Polarized Radial Diameter - 10*9.5
click to zoom

EEHAZA1J680B Details

  • Manufacturer Part Number:

    EEHAZA1J680B

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    8

  • Additional Feature:

    ESR IS MEASURED AT 100 KHZ

  • Capacitance:

    68 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    10 mm

  • Dielectric Material:

    ALUMINUM (SOLID POLYMER)

  • ESR:

    30 mΩ

  • Leakage Current:

    0.04284 mA

  • Length:

    9.5 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Style:

    Radial

  • Packing Method:

    AMMO PACK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    63 V

  • Reference Standard:

    AEC-Q200

  • Ripple Current:

    270 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.08

  • Terminal Pitch:

    5 mm

  • Terminal Shape:

    WIRE

EEHAZA1J680B Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for EEHAZA1J680B is between 250°C to 260°C for a maximum of 5 seconds.
  • Yes, the EEHAZA1J680B capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, and cadmium above the specified limits.
  • The equivalent series resistance (ESR) of the EEHAZA1J680B capacitor is approximately 0.015 ohms at 100 kHz.
  • Yes, the EEHAZA1J680B capacitor is designed to withstand high-vibration environments, with a vibration endurance of 10 Hz to 2000 Hz, 1.5 mm amplitude.
  • The moisture sensitivity level (MSL) of the EEHAZA1J680B capacitor is MSL 2, which means it can withstand a maximum of 4 days in a humidity environment of 30°C and 60% RH before soldering.
