Panasonic recommends a soldering temperature profile with a peak temperature of 260°C (500°F) for a maximum of 10 seconds, and a preheating temperature of 150°C (302°F) to 180°C (356°F) for 60 seconds to 120 seconds.
The EEHZA1E101XV capacitor is designed to handle high-frequency noise due to its low equivalent series resistance (ESR) and high resonance frequency. It is suitable for high-frequency applications such as decoupling and filtering.
Yes, the EEHZA1E101XV capacitor is AEC-Q200 qualified, which means it meets the stringent requirements for automotive applications, including high reliability, high temperature, and vibration resistance.
The EEHZA1E101XV capacitor has an MSL rating of 2a, which means it can withstand exposure to moisture for up to 4 days at 30°C (86°F) and 60% relative humidity without requiring baking or drying.
Yes, the EEHZA1E101XV capacitor is rated for operation up to 125°C (257°F), making it suitable for high-temperature applications such as automotive, industrial, and aerospace.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EEHZA1E101XV Overview

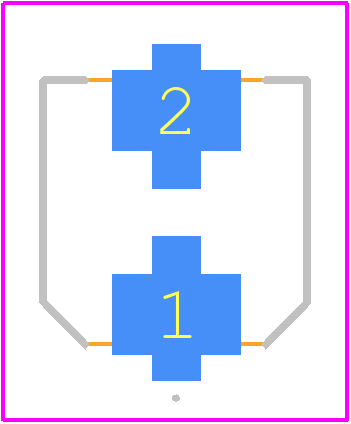

Use the download button to access the EEHZA1E101XV schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EEHZA,
or try a keyword search, such as Aluminum Electrolytic Capacitors
