EEHZA1E151V - Panasonic

Description: Vibration Proof Electrolytic Capacitor

Download EEHZA1E151V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EEHZA1E151V - Panasonic - PCB symbol
click to zoom
PCB Footprints

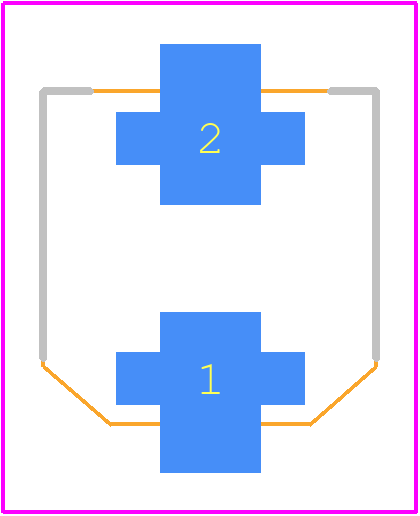

EEHZA1E151V - Panasonic PCB footprint - Other - Other - Hybrid_F_VP
click to zoom
3D Models
EEHZA1E151V - Panasonic - 3D model - Other - Hybrid_F_VP
click to zoom

EEHZA1E151V Details

  • Manufacturer Part Number:

    EEHZA1E151V

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    9

  • Additional Feature:

    ESR IS MEASURED AT 100 KHZ

  • Capacitance:

    150 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    8 mm

  • Dielectric Material:

    ALUMINUM (SOLID POLYMER)

  • ESR:

    27 mΩ

  • Height:

    10.5 mm

  • Leakage Current:

    0.0375 mA

  • Length:

    8.3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Style:

    SMT

  • Packing Method:

    TR, EMBOSSED, 15 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    25 V

  • Reference Standard:

    AEC-Q200

  • Ripple Current:

    345 mA

  • Size Code:

    3333

  • Surface Mount:

    YES

  • Tan Delta:

    0.14

  • Terminal Shape:

    FLAT

  • Width:

    8.3 mm

EEHZA1E151V Frequently Asked Questions (FAQs)

  • Panasonic recommends a soldering temperature profile with a peak temperature of 260°C (500°F) for 10-30 seconds, with a ramp-up rate of 2-3°C/s and a ramp-down rate of 2-3°C/s.
  • Yes, the EEHZA1E151V is designed to withstand high vibrations. It meets the IEC 60068-2-6 vibration test standard, which involves 10-2000 Hz frequency sweeps with an amplitude of 1.5 mm.
  • The EEHZA1E151V has a moisture resistance rating of 85°C/85% RH/1000 hours, which means it can withstand high humidity and temperature conditions without significant degradation.
  • The ESR of the EEHZA1E151V is approximately 0.15 ohms at 100 kHz, which is relatively low and suitable for high-frequency applications.
  • Yes, the EEHZA1E151V is rated for operation up to 150°C, making it suitable for high-temperature applications such as automotive, industrial, and aerospace systems.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EEHZA1E151V Overview

Use the download button to access the EEHZA1E151V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EEHZA, or try a keyword search, such as Aluminum Electrolytic Capacitors
