- Part Number EEHZC1E470P
- Manufacturer Panasonic
- Pin Count 2
- Part Category Capacitor Polarised
- Package Category Other

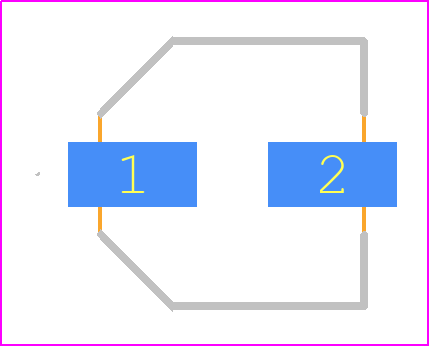

- Footprint Name Other - Hybrid_D_D8_1
- Released Date Sep 29, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
EEHZC1E470P Details
-
Manufacturer Part Number:
EEHZC1E470P
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
CHIP
-
Reach Compliance Code:
Compliant
-
Country Of Origin:
Japan
-
ECCN Code:
EAR99
-
HTS Code:
8532.22.00.20
-
Manufacturer:
Panasonic Electronic Components
-
YTEOL:
9
-
Additional Feature:
ESR IS MEASURED AT 100 KHZ
EEHZC1E470P Frequently Asked Questions (FAQs)
-
The recommended land pattern for EEHZC1E470P can be found in the Panasonic Electronic Components' recommended footprint document or by consulting with a PCB design expert. A general guideline is to follow the IPC-7351 standard for surface-mount components.
-
EEHZC1E470P is a moisture-sensitive device. It's essential to follow the recommended storage and handling procedures to prevent moisture absorption. Store the components in a dry environment, and use a dry pack or desiccant to maintain a low humidity level. Follow the MSL (Moisture Sensitivity Level) guidelines for handling and reflow soldering.
-
The maximum reflow temperature for EEHZC1E470P is 260°C (500°F) for a maximum of 30 seconds. Exceeding this temperature can cause damage to the component. It's essential to follow the recommended reflow profile to ensure reliable soldering.
-
EEHZC1E470P is designed for general-purpose use, but it may not be suitable for high-vibration environments. If your application requires high vibration resistance, consider using a component specifically designed for such environments, or consult with a Panasonic representative for guidance.
-
The ESR of EEHZC1E470P can be determined by measuring the impedance of the component using an impedance analyzer or a vector network analyzer. You can also consult the Panasonic datasheet or application notes for guidance on ESR calculation.
