EEHZE1H101P - Panasonic

Description: --

Download EEHZE1H101P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EEHZE1H101P - Panasonic - PCB symbol
click to zoom

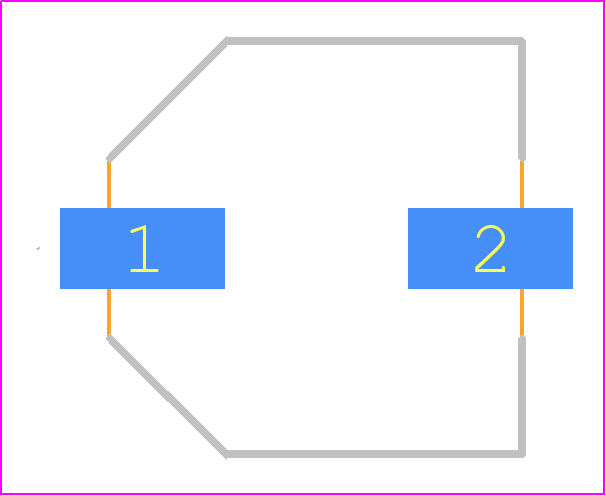

PCB Footprints
EEHZE1H101P - Panasonic PCB footprint - Other - Other - Hybrid_G_G16
click to zoom
3D Models
EEHZE1H101P - Panasonic - 3D model - Other - Hybrid_G_G16
click to zoom

EEHZE1H101P Details

  • Manufacturer Part Number:

    EEHZE1H101P

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    9

  • Additional Feature:

    ESR IS MEASURED AT 100 KHZ

  • Capacitance:

    100 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Dielectric Material:

    ALUMINUM (SOLID POLYMER)

  • ESR:

    28 mΩ

  • Height:

    10.2 mm

  • Leakage Current:

    0.05 mA

  • Length:

    10.3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    145 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR, EMBOSSED, 15 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    50 V

  • Reference Standard:

    AEC-Q200

  • Ripple Current:

    120 mA

  • Size Code:

    4141

  • Surface Mount:

    YES

  • Tan Delta:

    0.10

  • Terminal Shape:

    FLAT

  • Width:

    10.3 mm

EEHZE1H101P Frequently Asked Questions (FAQs)

  • The recommended land pattern for EEHZE1H101P is a rectangular pad with a size of 2.5mm x 1.25mm, with a 0.5mm radius corner and a 0.3mm solder mask clearance.
  • Yes, EEHZE1H101P is rated for operation up to 125°C, making it suitable for high-temperature applications. However, it's essential to ensure that the component is properly derated and that the operating conditions are within the specified limits.
  • To prevent damage, handle EEHZE1H101P by the tabs or the body, avoiding touching the leads or the component's electrical contacts. Use anti-static wrist straps, mats, or other ESD protection methods to prevent electrostatic discharge damage.
  • The recommended soldering profile for EEHZE1H101P is a peak temperature of 260°C, with a dwell time of 10-30 seconds. It's essential to follow the soldering profile recommended by Panasonic to ensure reliable assembly and prevent damage to the component.
  • EEHZE1H101P is not designed for use in humid or moist environments. It's essential to ensure that the component is operated in a dry environment, and that any moisture-related precautions are taken to prevent damage or degradation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EEHZE1H101P Overview

Use the download button to access the EEHZE1H101P schematic symbol, PCB footprint, and 3D model.
