EEHZK1V221UP - Panasonic

Description: Aluminium Electrolytic Capacitor

Download EEHZK1V221UP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EEHZK1V221UP - Panasonic - PCB symbol
click to zoom

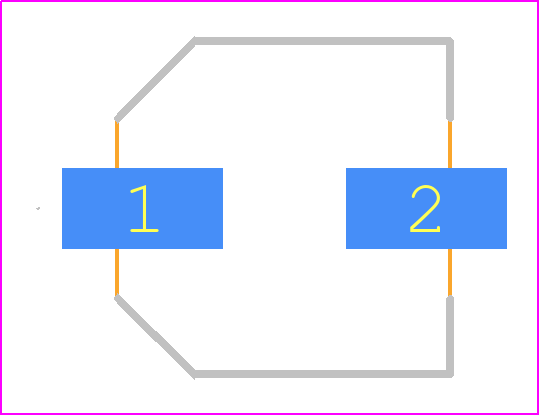

PCB Footprints
EEHZK1V221UP - Panasonic PCB footprint - Other - Other - Hybrid_F
click to zoom
3D Models
EEHZK1V221UP - Panasonic - 3D model - Other - Hybrid_F
click to zoom

EEHZK1V221UP Details

  • Manufacturer Part Number:

    EEHZK1V221UP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    8

  • Additional Feature:

    ESR MEASURED AT 100KHZ

  • Capacitance:

    220 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Dielectric Material:

    ALUMINUM (SOLID POLYMER)

  • ESR:

    27 mΩ

  • Height:

    10.2 mm

  • Leakage Current:

    0.077 mA

  • Length:

    8.3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Style:

    SMT

  • Packing Method:

    TR, EMBOSSED, 15 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    35 V

  • Reference Standard:

    AEC-Q200

  • Ripple Current:

    300 mA

  • Size Code:

    3333

  • Surface Mount:

    YES

  • Tan Delta:

    0.12

  • Terminal Shape:

    FLAT

  • Width:

    8.3 mm

EEHZK1V221UP Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for EEHZK1V221UP is 260°C (500°F) for 10 seconds or less, to prevent damage to the capacitor.
  • Yes, EEHZK1V221UP is designed to withstand high vibrations and is suitable for use in applications with mechanical stress, such as automotive and industrial systems.
  • EEHZK1V221UP has a moisture-resistant coating and is designed to operate in humid environments. However, it's still important to follow proper storage and handling procedures to prevent moisture absorption.
  • The ESR of EEHZK1V221UP is typically around 0.15 ohms at 100 kHz, but this value can vary depending on the frequency and operating conditions.
  • EEHZK1V221UP is rated for operation up to 125°C (257°F), but its performance and lifespan may be affected at temperatures above 105°C (221°F). Derating may be necessary for high-temperature applications.
