Panasonic recommends a PCB layout with a large copper area for the capacitor pads to reduce ESR. A minimum of 2 oz copper thickness is recommended. Additionally, the capacitor should be placed close to the power source and the return path should be as short as possible.
The EEUFC1A102L is designed to operate up to 100 kHz. At high frequencies, the capacitor's impedance increases due to the ESL (Equivalent Series Inductance). To minimize the impact of ESL, it's recommended to use a capacitor with a low ESL value, such as the EEUFC1A102L, and to optimize the PCB layout.
The derating curve for the EEUFC1A102L is not explicitly provided in the datasheet. However, according to Panasonic's general guidelines, the capacitance value decreases by approximately 2% per 10°C increase above 85°C. It's recommended to consult with Panasonic's application engineers for specific derating curves.
The EEUFC1A102L is designed to withstand vibrations up to 10 Hz to 2000 Hz, 10 G acceleration. However, it's recommended to consult with Panasonic's application engineers to determine the suitability of the capacitor for specific vibration environments.
Panasonic recommends a soldering profile with a peak temperature of 260°C, a dwell time of 10-30 seconds, and a cooling rate of 2-4°C/second. It's recommended to consult with Panasonic's application engineers for specific soldering profile recommendations.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EEUFC1A102L Overview

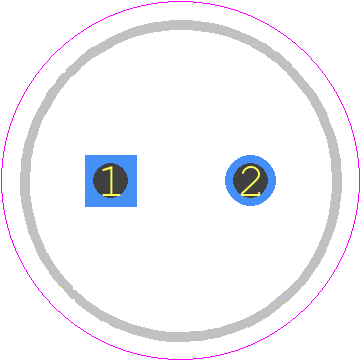

Use the download button to access the EEUFC1A102L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EEUFC,
or try a keyword search, such as Ceramic Capacitors
