EEUFC2A121S - Panasonic

Description: Aluminium Electrolytic Capacitor, Radial Lead, AEC-Q200, 105?C, 120uf, 100v,16 x 15 mm

Download EEUFC2A121S Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EEUFC2A121S - Panasonic - PCB symbol
click to zoom
PCB Footprints

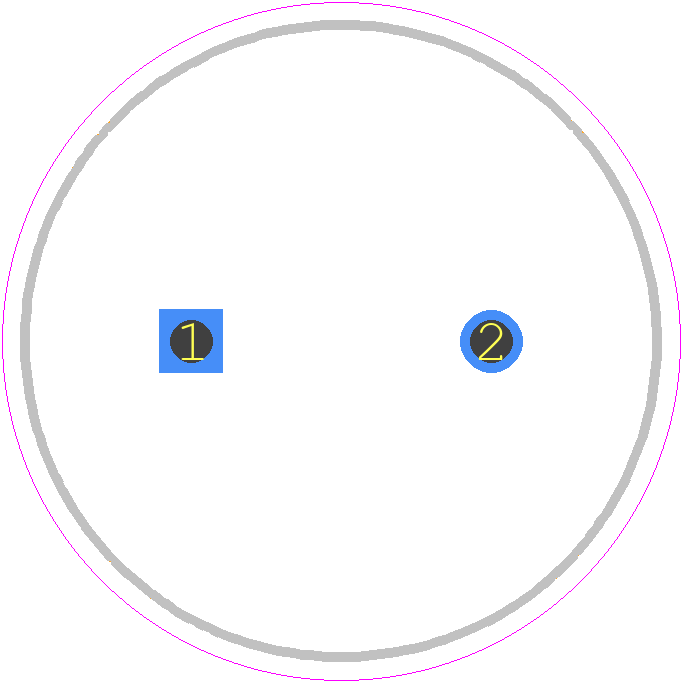

EEUFC2A121S - Panasonic PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 16*15
click to zoom
3D Models
EEUFC2A121S - Panasonic - 3D model - Capacitor, Polarized Radial Diameter - 16*15
click to zoom

EEUFC2A121S Details

  • Manufacturer Part Number:

    EEUFC2A121S

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Factory Lead Time:

    21 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    7

  • Capacitance:

    120 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    16 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.12 mA

  • Length:

    15 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    100 V

  • Reference Standard:

    AEC-Q200

  • Ripple Current:

    515.45 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.07

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    7.5 mm

  • Terminal Shape:

    WIRE

EEUFC2A121S Frequently Asked Questions (FAQs)

  • The recommended land pattern for EEUFC2A121S is a rectangular pad with a size of 3.5mm x 2.5mm, with a 0.5mm radius corner and a 0.3mm spacing between pads.
  • EEUFC2A121S is rated for operation up to 125°C, but it's recommended to derate the voltage and current ratings above 85°C to ensure reliable operation. Consult the datasheet for specific derating guidelines.
  • EEUFC2A121S has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and storage, such as using an ESD wrist strap or mat, and storing the components in an ESD-protected package.
  • The ESR of EEUFC2A121S is not explicitly stated in the datasheet, but it's typically in the range of 10-20 mohms for aluminum electrolytic capacitors of this type. Consult the manufacturer or a reliable component database for a more accurate value.
  • Yes, EEUFC2A121S can be used in DC-DC converter applications, but it's essential to ensure that the capacitor is rated for the specific voltage and current requirements of the converter, and that the capacitor's ripple current rating is not exceeded.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EEUFC2A121S Overview

Use the download button to access the EEUFC2A121S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EEUFC, or try a keyword search, such as Aluminum Electrolytic Capacitors
