EEUFK1V182S - Panasonic

Description: Aluminium Electrolytic Capacitor, Radial Lead, 105?C 3000h - 5000h

Download EEUFK1V182S Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EEUFK1V182S - Panasonic - PCB symbol
click to zoom
PCB Footprints

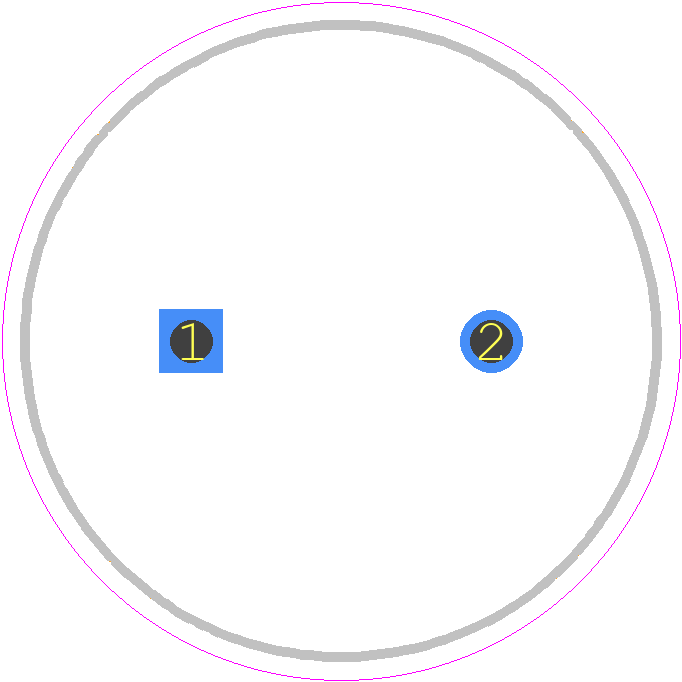

EEUFK1V182S - Panasonic PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 16*20
click to zoom
3D Models
EEUFK1V182S - Panasonic - 3D model - Capacitor, Polarized Radial Diameter - 16*20
click to zoom

EEUFK1V182S Details

  • Manufacturer Part Number:

    EEUFK1V182S

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Factory Lead Time:

    21 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    7

  • Capacitance:

    1800 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    16 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.63 mA

  • Length:

    20 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    35 V

  • Reference Standard:

    AEC-Q200

  • Ripple Current:

    1864 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.14

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    7.5 mm

  • Terminal Shape:

    WIRE

EEUFK1V182S Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for EEUFK1V182S is 260°C (500°F) for 10 seconds or less, to prevent damage to the capacitor.
  • Yes, EEUFK1V182S is designed to withstand high vibrations and is suitable for use in applications with high mechanical stress, such as automotive and industrial systems.
  • The EEUFK1V182S capacitor is designed to provide low impedance and high-frequency noise suppression, making it suitable for use in high-frequency circuits and noise-sensitive applications.
  • Yes, the EEUFK1V182S capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances such as lead, mercury, or cadmium.
  • The shelf life of EEUFK1V182S capacitors is typically 2 years from the date of manufacture, but it's recommended to follow proper storage and handling procedures to ensure the capacitors remain within their specifications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EEUFK1V182S Overview

Use the download button to access the EEUFK1V182S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EEUFK, or try a keyword search, such as Ceramic Capacitors

Parts related to EEUFK1V182S

Showing 0 results

Part Image

← Prev Next →
