EEUFP1E102B - Panasonic

Description: Aluminium Electrolytic Capacitor, Radial Lead

Download EEUFP1E102B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EEUFP1E102B - Panasonic - PCB symbol
click to zoom
PCB Footprints

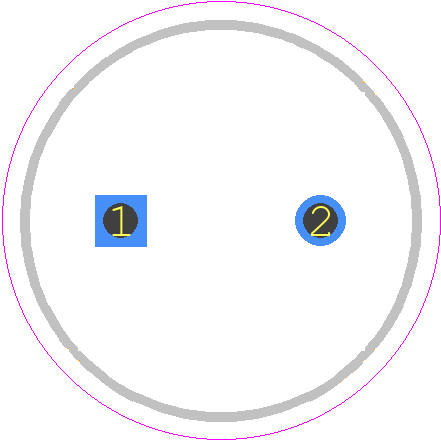

EEUFP1E102B - Panasonic PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 10*20
click to zoom
3D Models
EEUFP1E102B - Panasonic - 3D model - Capacitor, Polarized Radial Diameter - 10*20
click to zoom

EEUFP1E102B Details

  • Manufacturer Part Number:

    EEUFP1E102B

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Factory Lead Time:

    49 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    7

  • Additional Feature:

    ESR IS MEASURED AT 100 KHZ

  • Capacitance:

    1000 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    10 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    52 mΩ

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.25 mA

  • Length:

    20 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Style:

    Radial

  • Packing Method:

    AMMO PACK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    25 V

  • Reference Standard:

    AEC-Q200

  • Ripple Current:

    1950 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.16

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    5 mm

  • Terminal Shape:

    WIRE
