Part Image

EEUFR1J151B - Panasonic

Description: PANASONIC - EEUFR1J151B - Electrolytic Capacitor, 150 µF, 63 V, FR Series, ± 20%, Radial Leaded, 10 mm

Download EEUFR1J151B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EEUFR1J151B - Panasonic - PCB symbol
click to zoom

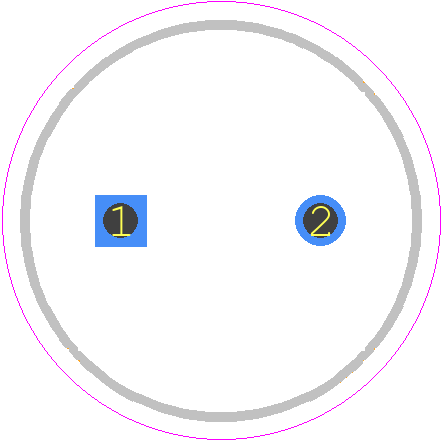

PCB Footprints
EEUFR1J151B - Panasonic PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 10*16---
click to zoom
3D Models
EEUFR1J151B - Panasonic - 3D model - Capacitor, Polarized Radial Diameter - 10*16---
click to zoom

EEUFR1J151B Details

  • Manufacturer Part Number:

    EEUFR1J151B

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    6

  • Capacitance:

    150 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    10 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.0945 mA

  • Length:

    16 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Radial

  • Packing Method:

    AMMO PACK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    63 V

  • Ripple Current:

    751.1 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.09

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    5 mm

  • Terminal Shape:

    WIRE

EEUFR1J151B Frequently Asked Questions (FAQs)

  • The recommended land pattern for EEUFR1J151B is a rectangular pad with a size of 3.5mm x 2.5mm, with a solder mask opening of 3.1mm x 2.1mm. It's essential to follow the recommended land pattern to ensure reliable soldering and to prevent thermal stress.
  • To prevent damage, store EEUFR1J151B components in a dry, cool place, away from direct sunlight and moisture. During transportation, use anti-static packaging materials and avoid exposing the components to mechanical stress or vibration.
  • The maximum allowable voltage derating for EEUFR1J151B is 80% of the rated voltage. This means that if the rated voltage is 50V, the maximum allowable voltage derating would be 40V. Exceeding this limit may reduce the component's lifespan or cause premature failure.
  • EEUFR1J151B is a general-purpose aluminum electrolytic capacitor, and it's not recommended for high-frequency applications above 100kHz. For high-frequency applications, consider using film capacitors or ceramic capacitors specifically designed for high-frequency use.
  • The ESR of EEUFR1J151B can be determined by measuring the impedance of the capacitor at a specific frequency (usually 100kHz) using an impedance analyzer or a network analyzer. The ESR value can also be estimated using the datasheet values for capacitance and dissipation factor.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EEUFR1J151B Overview

Use the download button to access the EEUFR1J151B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EEUFR, or try a keyword search, such as Aluminum Electrolytic Capacitors
