EEUFR1J471 - Panasonic

Description: PANASONIC - EEUFR1J471 - Electrolytic Capacitor, Low ESR, 470 µF, 63 V, FR Series, ± 20%, Radial Leaded, 12.5 mm

Download EEUFR1J471 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EEUFR1J471 - Panasonic - PCB symbol
click to zoom
PCB Footprints

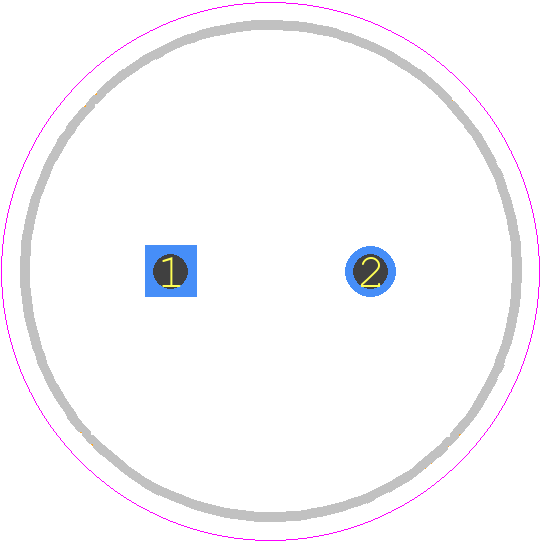

EEUFR1J471 - Panasonic PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 12.5*25
click to zoom
3D Models
EEUFR1J471 - Panasonic - 3D model - Capacitor, Polarized Radial Diameter - 12.5*25
click to zoom

EEUFR1J471 Details

  • Manufacturer Part Number:

    EEUFR1J471

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Factory Lead Time:

    21 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    6

  • Capacitance:

    470 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    12.5 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.2961 mA

  • Length:

    25 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    63 V

  • Ripple Current:

    1496.25 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.09

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    5 mm

  • Terminal Shape:

    WIRE

EEUFR1J471 Frequently Asked Questions (FAQs)

  • The recommended land pattern for EEUFR1J471 is a rectangular pad with a size of 3.5mm x 2.5mm, with a 0.5mm radius corner. The pad should be centered on the component and have a solder mask clearance of 0.2mm.
  • During reflow soldering, the EEUFR1J471 should be placed on a flat surface to prevent warping or deformation. The component should be centered on the PCB and secured with a small amount of adhesive or tape to prevent movement during the reflow process.
  • The maximum operating temperature for EEUFR1J471 is 125°C, with a derating of 1.25% per °C above 85°C. It's essential to ensure that the component does not exceed this temperature to prevent degradation or failure.
  • Yes, EEUFR1J471 is designed to withstand high-vibration environments. However, it's essential to ensure that the component is properly secured to the PCB using a suitable adhesive or mechanical fastening method to prevent movement or detachment during vibration.
  • EEUFR1J471 components should be stored in a dry, cool place, away from direct sunlight and moisture. The components should be stored in their original packaging or in a sealed bag to prevent moisture absorption.
