EEUFR1J820 - Panasonic

Description: Aluminium Electrolytic Capacitor, Radial Lead

Download EEUFR1J820 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EEUFR1J820 - Panasonic - PCB symbol
click to zoom
PCB Footprints

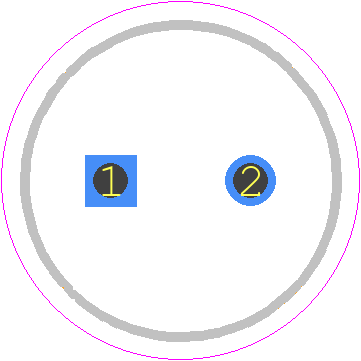

EEUFR1J820 - Panasonic PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 8*11.5
click to zoom
3D Models
EEUFR1J820 - Panasonic - 3D model - Capacitor, Polarized Radial Diameter - 8*11.5
click to zoom

EEUFR1J820 Details

  • Manufacturer Part Number:

    EEUFR1J820

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Factory Lead Time:

    21 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    6

  • Capacitance:

    82 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    8 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.05166 mA

  • Length:

    11.5 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Style:

    Radial

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    63 V

  • Ripple Current:

    396.2 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.09

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    3.5 mm

  • Terminal Shape:

    WIRE

EEUFR1J820 Frequently Asked Questions (FAQs)

  • The recommended land pattern for EEUFR1J820 is a rectangular pad with a size of 3.5mm x 2.5mm, with a solder mask clearance of 0.5mm. It's also recommended to have a via-in-pad design to reduce thermal resistance.
  • To handle thermal management, ensure good thermal conductivity between the capacitor and the PCB by using a thermal interface material (TIM) and a heat sink if necessary. Also, keep the capacitor away from heat sources and ensure good airflow around the component.
  • The derating curve for EEUFR1J820 is not explicitly provided in the datasheet, but as a general rule, it's recommended to derate the capacitor's voltage rating by 10-20% for every 10°C increase in operating temperature above 85°C.
  • Yes, EEUFR1J820 is designed to withstand vibrations up to 10Hz to 200Hz, with an acceleration of 10G. However, it's recommended to perform additional testing and validation to ensure the capacitor's reliability in your specific application.
  • The recommended soldering profile for EEUFR1J820 is a peak temperature of 260°C, with a dwell time of 10-30 seconds. It's also recommended to use a solder with a melting point of 217°C or higher.
