EEVFK1A472M - Panasonic

Description: Aluminum Electrolytic Capacitors - SMD 4700uF 10V

Download EEVFK1A472M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EEVFK1A472M - Panasonic - PCB symbol
click to zoom
PCB Footprints

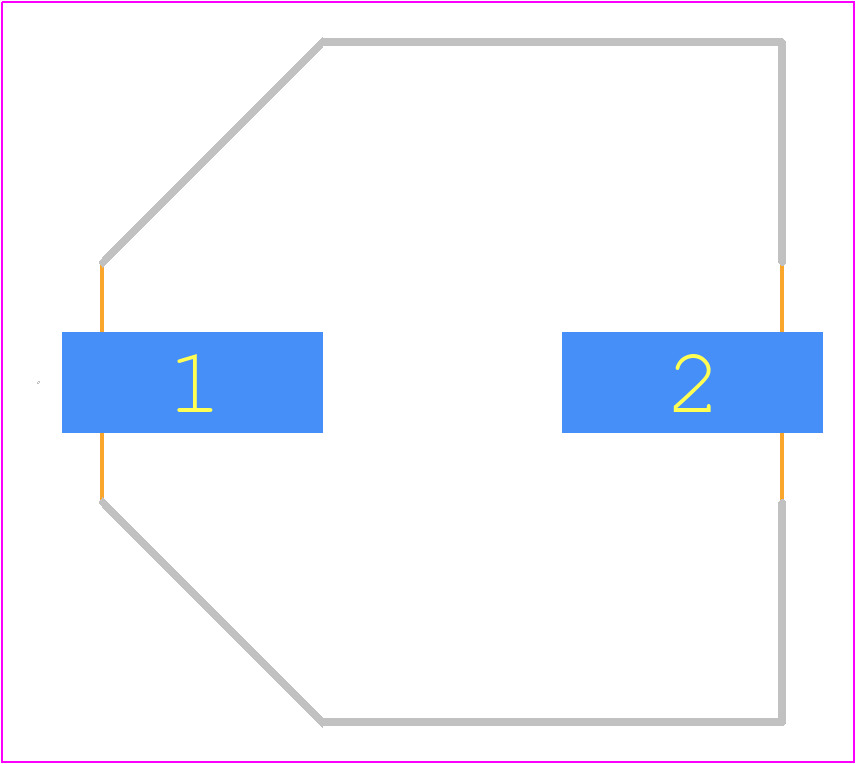

EEVFK1A472M - Panasonic PCB footprint - Other - Other - SMD_Lytic_J16
click to zoom
3D Models
EEVFK1A472M - Panasonic - 3D model - Other - SMD_Lytic_J16
click to zoom

EEVFK1A472M Details

  • Manufacturer Part Number:

    EEVFK1A472M

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Factory Lead Time:

    21 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    7

  • Capacitance:

    4700 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Dielectric Material:

    ALUMINUM (WET)

  • Height:

    16.5 mm

  • Leakage Current:

    0.47 mA

  • Length:

    17 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Style:

    SMT

  • Packing Method:

    TR, EMBOSSED, 13 INCH

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    10 V

  • Reference Standard:

    AEC-Q200

  • Ripple Current:

    1350 mA

  • Size Code:

    6767

  • Surface Mount:

    YES

  • Tan Delta:

    0.25

  • Terminal Finish:

    Tin (Sn)

  • Terminal Shape:

    FLAT

  • Width:

    17 mm

EEVFK1A472M Frequently Asked Questions (FAQs)

  • The recommended land pattern for EEVFK1A472M is a rectangular pad with a size of 3.5mm x 2.5mm, with a 0.5mm radius corner and a 0.3mm gap between pads.
  • EEVFK1A472M is rated for operation up to 125°C, but it's recommended to derate the voltage and current ratings according to the temperature derating curve provided in the datasheet.
  • The ESR of EEVFK1A472M is typically around 0.02Ω. You should consider this value when designing your circuit to ensure proper impedance matching and minimize energy losses.
  • Yes, EEVFK1A472M is compatible with lead-free soldering processes, but it's recommended to follow the recommended soldering conditions and profiles to ensure reliable assembly.
  • EEVFK1A472M should be stored in a dry, cool place with a temperature range of 5°C to 30°C and humidity below 60%. Avoid exposing the components to direct sunlight, moisture, or extreme temperatures.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EEVFK1A472M Overview

Use the download button to access the EEVFK1A472M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EEVFK, or try a keyword search, such as Ceramic Capacitors
